Wire Steel Sheet Simple Slitting Machine 5 Tons Manual Decoiler

Wire Steel Sheet Simple Slitting Machine

Raw Material:

All of our machine profile is customized, above raw material is only for your reference.

1. Coil width: 1200mm
2. Thickness: 0.8-1.5mm

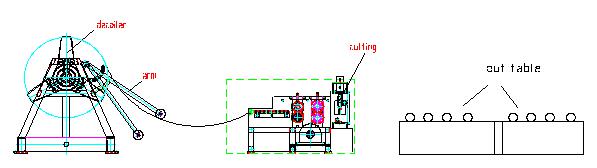

The Layout of Wire Steel Sheet Simple Slitting Machine :











Manual de-coiler—Feeding—Cutting—Out table

Item NO	Description	Offered specification
1	Roll Forming Machine	Cut to Length Machine
2	Coil width	1200mm
3	Rolling Speed	12-15m/min(not include cutting time)
4	Rolling Thickness	0.8-1.5mm GI
5	Control System	PLC (Panasonic) as list in the note
6	Un Coiler	5T manual de-coiler
7	Roller Stations	2 stations for feeding
8	Roller Material	Rubber roller
9	Shaft Material and DIA	￠85mm, material is 45# forge steel
10	Slitting	Maximum in 6 strips
11	Blades of slitting	5 sets of slitting
12	Post cutting	Hydraulic cutting slitting
13	Main Motor Power	7.5kw
14	Hydraulic Station Power	5.5kw
15	Hydraulic Pressure	12-16Mpa adjustable
16	Material Of Cutting	Cr12Mov quenching 58-62℃
17	Structure Of The Stations	Wall panel
18	Tolerance	3m+-1.5mm
19	Electric Source	380V, 50HZ,3 phase According to customer’s require
20	Way Of Drive	By chain
21	Color Of The Machine	Yellow and blue
22	Size of the machine	L*W*H about 2.0m*1.7m*1.2m
23	Container Need	1×20 feet

Main Features

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
