WIDESPAN ROOF SHEETING ROLL FORMING MACHINE
Widespan Roof Sheeting Roll Forming Machine is designed to produce widespan roofing sheets. Which is widely used in South African.

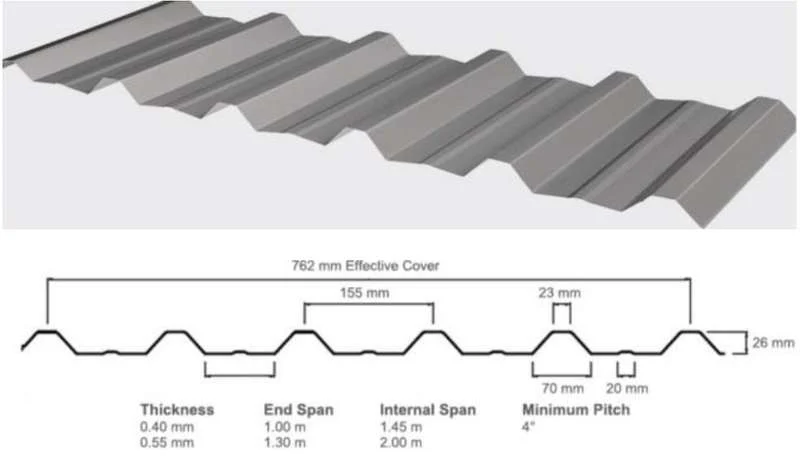

Here are some drawing profile for your reference:
PROFILE DETAILS:
TRS 6 is one of the classic wide span, bold rib trapezoidal profile used commercially and for residential buildings. And the material could be roofing and cladding. G550 grade steel with minimum 0.40mm BMT and maximum 0.55 BMT gives more resilience to damage.
APPLICATION wide span roofing sheet is ideal for use on new homes, and existing buildings as roofing and wall cladding system. End Span 0.40/0.55 BMT: 1100 mm/1300 mm and internal Span 0.40/0.55 BMT: 1450mm/2000 mm
LOW/MEDIUM WIND ZONE:Timber: class 4 12 x 65mm with neo washer and embossed washer.

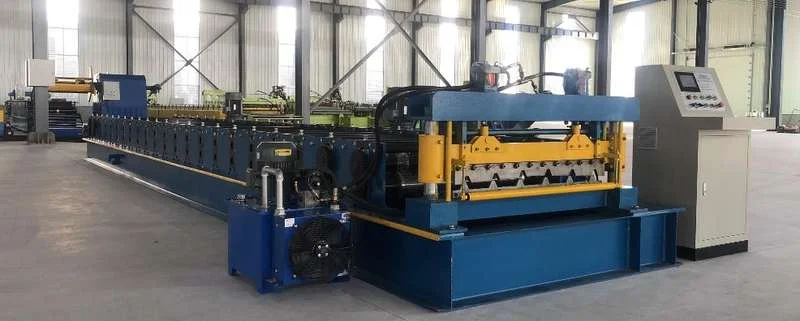

Wide span Roof Sheeting Roll Forming Machine:
What’s Widespan different with the normal IBR type?
Widespan is a box profile which is similar to IBR Roofing Sheeting. Using the same input width coil, it have a better cover width than a IBR roofing sheet. It is more economical alternative than IBR Roofing Sheeting.Widespan roof sheeting has various applications from industrial and residential roof covering ti side cladding for factories and warehouses. Widespan is also popular solution carports and sheets due to its economical and aesthetic properties.The coils for Widespan Roofing sheet are Galvanized, Zinc, PPGI, etc. The thickness is from 0.2-0.8 and full hard material.
Layout of Widepan Roof Sheeting Roll Forming Machine
Uncoiling–Feeding and Guiding–Roll Forming-Cutting Off–Collecting

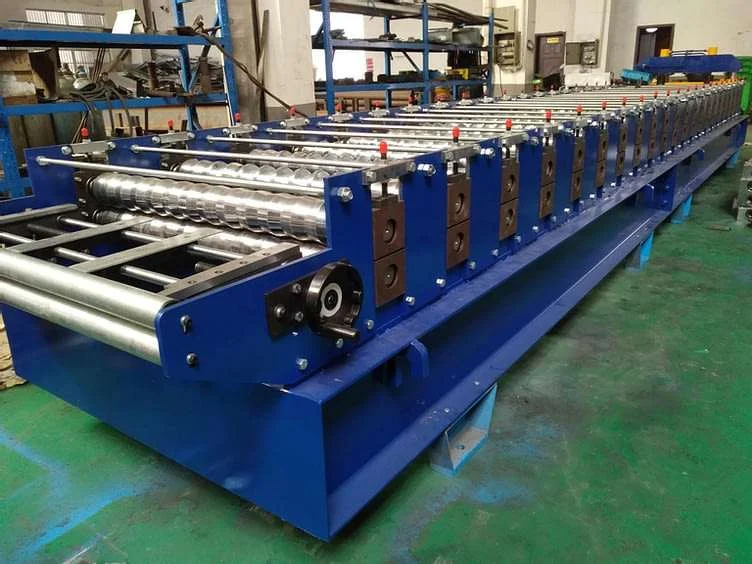

Roll Forming Machine of widespan for your reference:
- Adopt H Beam and Steel Plate Welded, the wall plate thickness is 25mm.
- Coil width: 914-925mm
- Forming Stands: 18
- Roller Material: ASTM 1045, quenched and chromed 0.05mm thickness
- Shaft Material: ASTM 1045, quenched, solid round steel, diameter is 80mm
- Main Motor Power: 7.5KW
- Power Transition: Chain and Gear
- Roll Forming Speed: 15m / min
- The machine will cover safety net.
The main part of widespan roof sheeting roll forming machine, quality design
Hydraulic Cutoff Device
- Material Of Cutting Mold: Cr12 Steel With Quenched Treatment HRC 60-62
- Cutting Length And Quantity: Workers Can Set The Length and Quantity on the PLC Touch Screen
- Hydraulic Station Power: 5.5 KW
- Tolerance Of Cutting Length: +/-2mm
And if you need more information, please contact us at any time.
