Villa Frame Rolling Forming Machine used for producing light steel villa skeletons, mainly used for processing light steel keel profiles. It is suitable for light steel structure buildings and can produce light steel dragon skeleton for supporting frames. It has the advantages of light weight, high load-bearing capacity, earthquake resistance, dust prevention, sound insulation, sound absorption, and constant temperature.

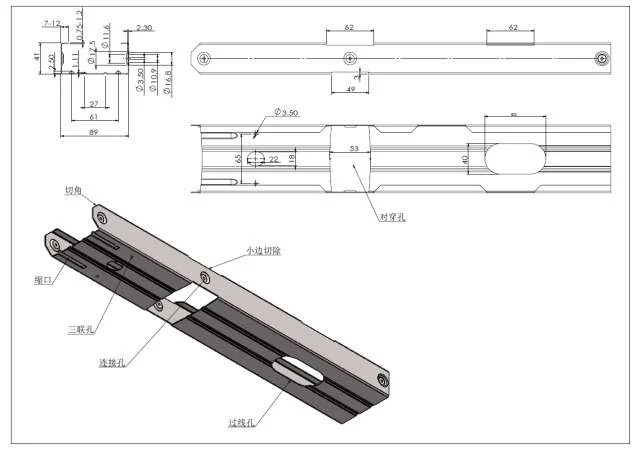

Drawing profile:

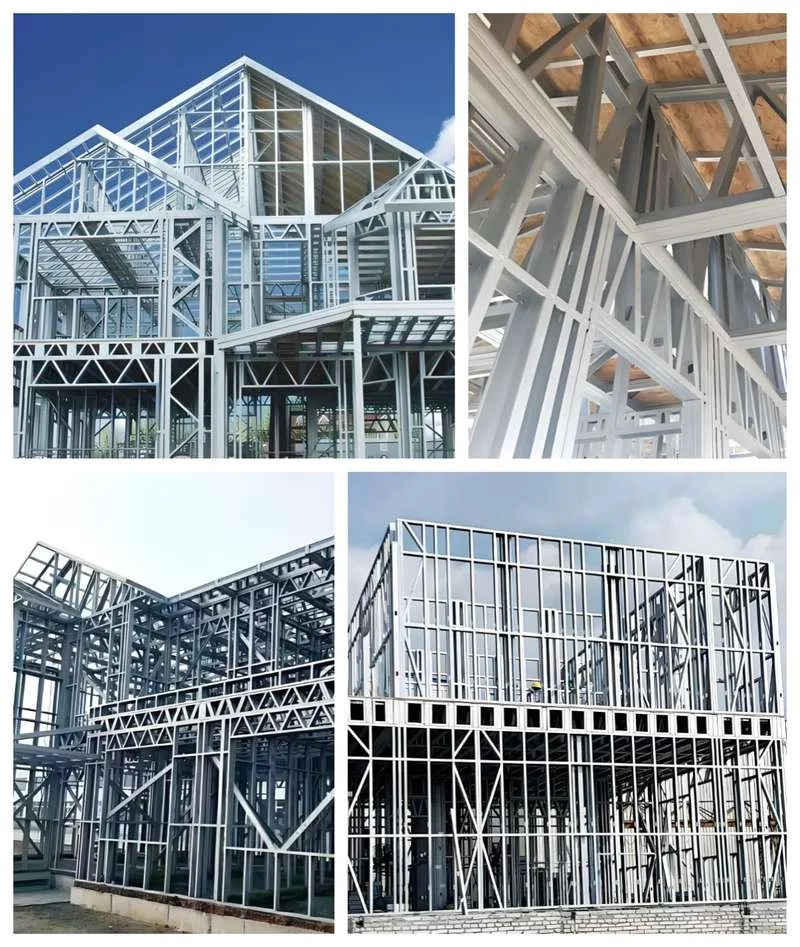

The application of finished products ：
Part 1. Electric decoiler
Function: Carry strip steel coil, rotating steel coil. With micro-braking device to prevent inertia from moving forward during emergency stop.
● Drive mode: electric drive power
● Bearing weight: 3T
●Inner diameter range: 430-590mm
●Outer diameter requirement: 1300mm

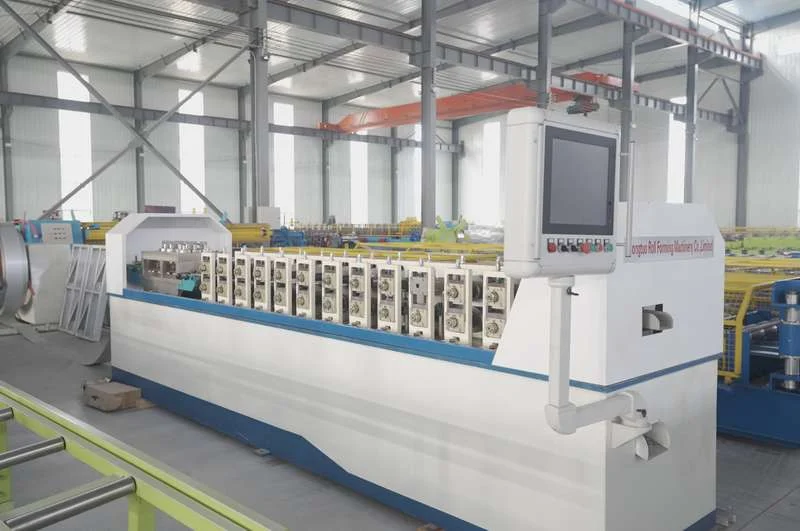

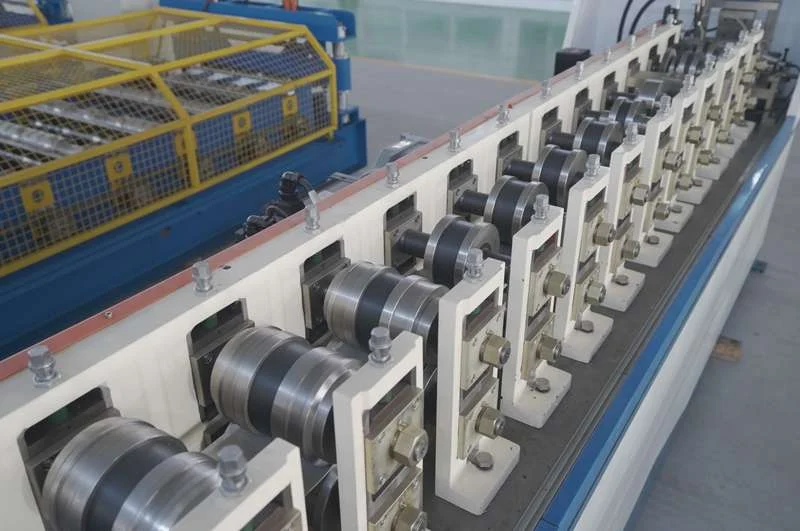

Part 2：Main rolling forming machine
- Transmission, we use gear, chain as transmission.
- Main servo motor: Servo motor (7.5KW), self-locking function.
- Roller material: SKD11.
- Shaft material : Imported materials, CNC center processing, HRC58-62 °, fine grinding.
- Forming speed: High speed 50 m / min (depending on the number of punches and cutting length).
- Production capacity: 80 to 100 square meter per day, if you work 8 hours per day.
- Forming pass: 9 sets of spindle roll forming, 4 sets of fine roll forming.
- Total weight of the machine: 3T.
- Total machine length: 4m x 0.8m x 1.2m (length * width * height).

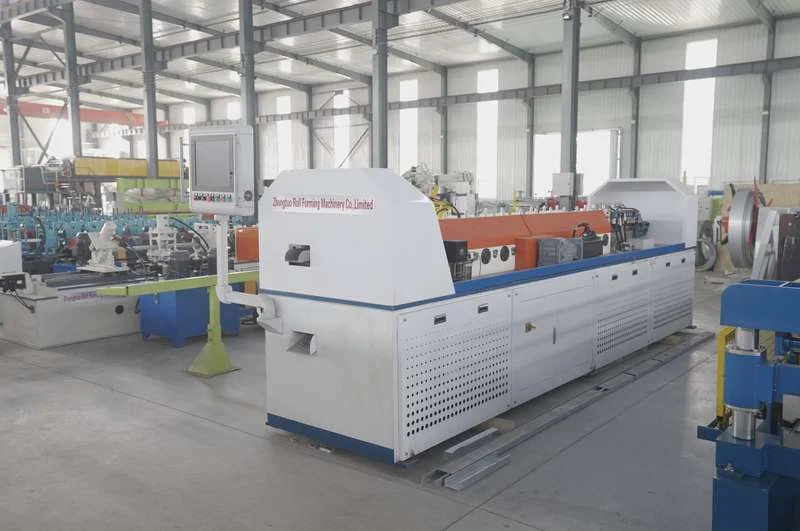

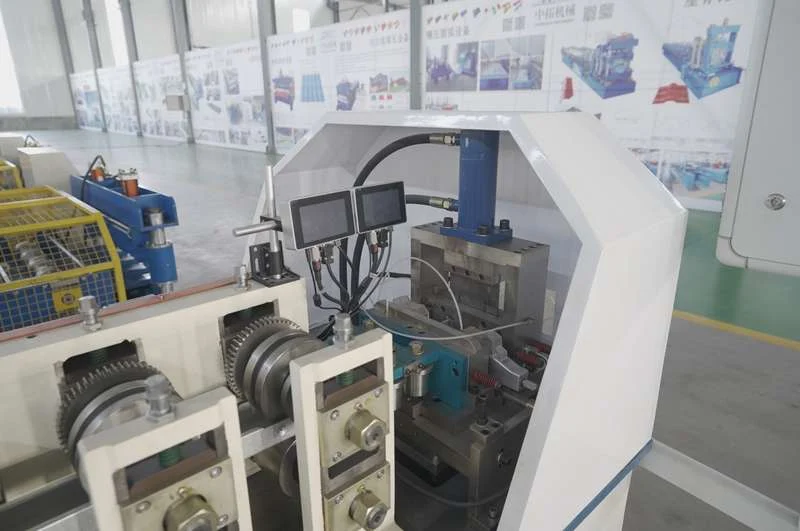

part 3. Hydraulic Shearing System
1.ower:5.5kw
2.Oil tank:120OL
3.Brand:Yuken series
Part 4. PLC control system
1.input:USB input the documents.IPC computer on set(operator windows system 7 required)
2.control:
(1)It allows you to control holes position, distance.
(2)Control shearing position.
(3)Control production pieces.
3.Design software:vertex system
