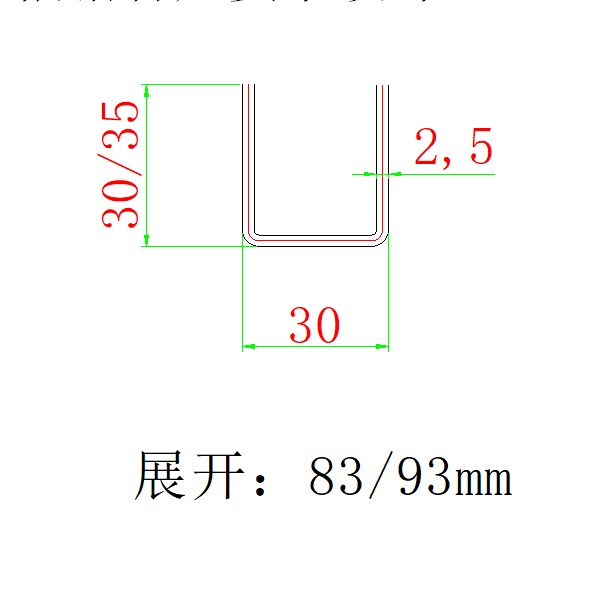

Equipment type Yx30x30-35mm
Working speed 15-25 meters per minute
Pressed sheet thickness 2-2,5mm
Control method Panasonic PLC

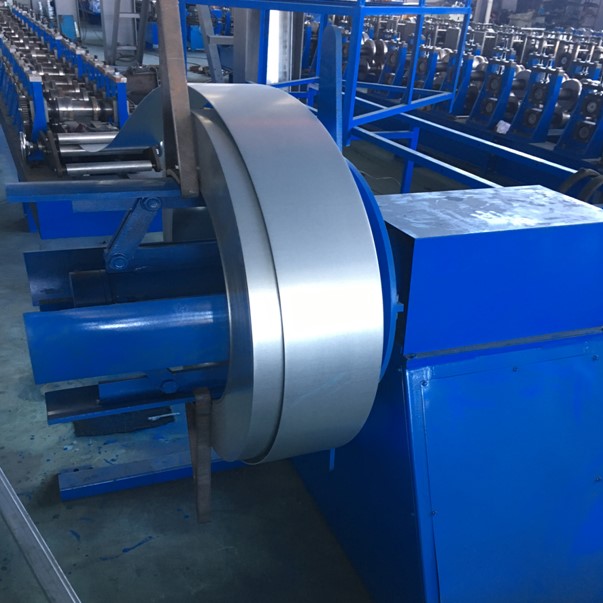

Dispensing rack 2 tons of manual discharge rack

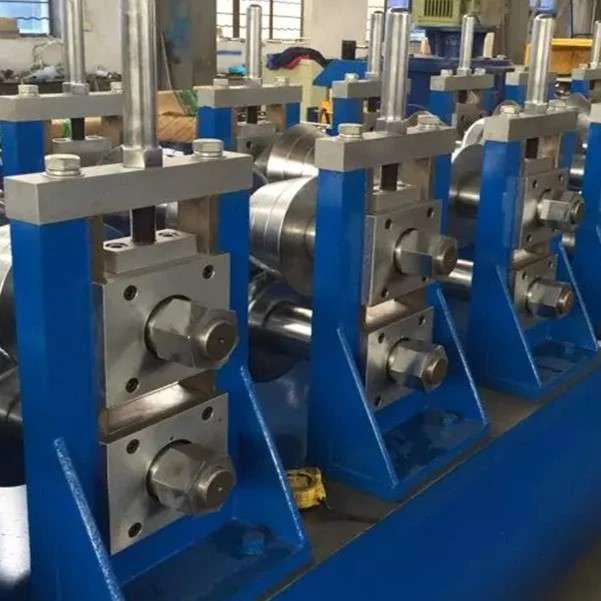

Number of molding tracks 12
Roll material CR12 steel after finishing hardening HRC58-62 ° C, surface chrome treatment
Shaft material and shaft diameter 45# steel finishing, shaft diameter is ¢76mm
Host power 11kw
Hydraulic station power 5,5kw
Hydraulic pressure 12Mpa
Scissors material Cr12Mov, quenched HRC 58-62°C
Length tolerance 3m ± 0,5mm
Voltage 380V, 50HZ, 3 phase
(Adjustable according to customer requirements)
Transmission mode 1, 2 inch chain drive
Equipment form
Equipment color company color
Equipment size length * width * height 7, 5 m *, 1.0 m * 1.2 m
