Stone-coated roof tile line making machine is a device used for producing colored stone tiles, mainly used for manufacturing high-performance building materials products. Colored stone tiles are made of aluminum zinc coated steel plates as the substrate, and are combined with colored sand particles, primer, and acrylic resin to form a building material product with excellent weather resistance and durability. Its substrate is refined through electroplating process with specific proportions of aluminum, zinc, and silicon, and has excellent processability and coating properties.
Apply photos of Stone-coated roof tile line making machine:
Stone-coated roof tile line material:
1. Coil material：color Sheet, galvanized sheet
2 .Coil material thickness: 0.4mm- 0.7mm
3.Feeding width：1250mm
The profile drawing for the felt sheet:
The technical specifications of the Stone-coated roof tile line:
| Item | Name | Specifications |
| 1 | Raw material | color Sheet, galvanized sheet |
| 2 | Raw material thickness | 0.3mm- 0.6mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller material | 45# steel |
| 6 | Shaft diameter | 85mm |
| 7 | Shaft material | 45# steel |
| 8 | Transmission | Gear transport |
| 9 | Motor power | 3kw |
| 10 | Machine frame | carbon steel welded |
| 11 | Cutting type | Hydraulic cutter |
| 12 | Hydraulic power | 3kw |
| 13 | Cutting blade material | G12 steel with quenched treated 60-62℃ |
| 14 | Cutting tolerance | ±1mm |
| 15 | Control system | PLC |
| 16 | Brand | Screen: DELTA screen PLC: DELTA |

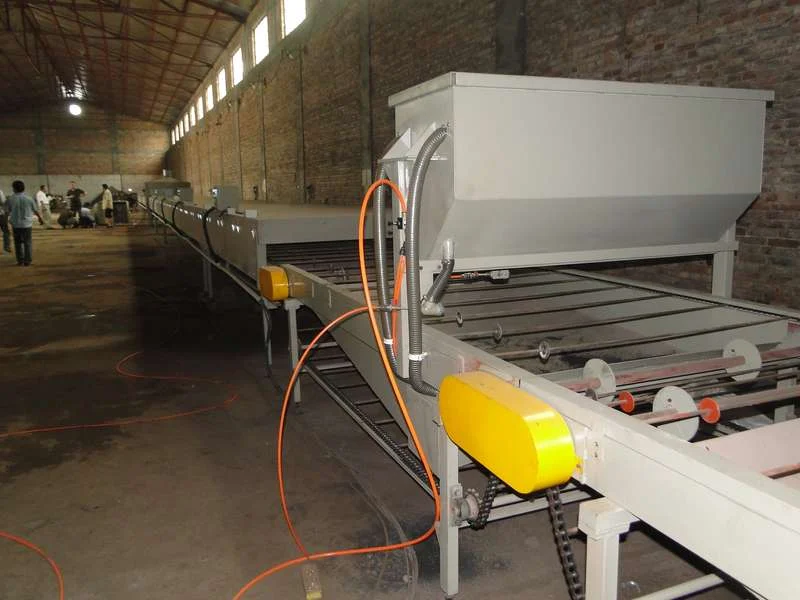

Sand blasting and glue coated (the stone coated machine line )
1 .Auto bottom glue spraying section
The main body is welded from 160 * steel sections
Length: 4000MM
Width: 1650mm
Height: 2000MM
Technical parameters: Power supply 380V/50-60HZ Total power: 4KW Production speed: 4-10S/piece, automatically controlled by frequency converter through PLC stepless speed regulation. The glue is sprayed into the automatic spray gun by a pneumatic airless spraying machine, and then the automatic spray gun is driven back and forth by a 750W stepper motor for automatic spraying.
The colored sand is poured into the feeding port and then stirred into the sand hopper through the mixing cage and lifted into the sand hopper. The PLC controls the automatic switch of the solenoid valve for cyclic use.
2 .The first time drying section
The main body is welded from 160 * steel square tubes, and the insulation is formed by bending 1.5mm cold plates with 140 * high-density materials inside lnsulation cotton filling.
Length: 6000mm/section, 10 sections in total, 60 meters in total
Width: 1650mm
Height: 1500mm
Technical parameters: Power supply 380v/50-60hz, total power 108KW, transmission frequency conversion motor 4kw/2 sets, automatically controlled by frequency converter through PLC stepless speed regulation, electric heating tube 1KW/piece, a total of 100 pieces. The temperature is automatically controlled by a digital temperature controller ranging from 0 ° C to 160 ° C.
3 .Auto face glue spraying section
The main body is welded from 160 * steel.
Long; 1500mm
Width: 1650mm
High; 2000mm
Technical parameters; Power supply 380v/50-60HZ total power; 1.5KW is automatically controlled by frequency converter and PLC infinite speed regulation. The adhesive is injected into the automatic spray gun by a pneumatic airless spraying machine, and then the automatic spray gun is driven back and forth by a 750 W stepper motor for automatic spraying.
4 .The second time drying section
The main body is welded from 160 * steel square tubes, and the insulation is formed by bending 1.5mm cold plates with 140 * high-density materials inside lnsulation cotton filling.
Length: 6000mm/section, 10 sections in total, 60 meters in total
Width: 1650mm
Height: 1500mm
Technical parameters: Power supply 380v/50-60hz, total power 108KW, transmission frequency conversion motor 4kw/2 sets, automatically controlled by frequency converter through PLC stepless speed regulation, electric heating tube 1KW/piece, a total of 100 pieces. The temperature is automatically controlled by a digital temperature controller ranging from 0 ° C to 160 ° C.
