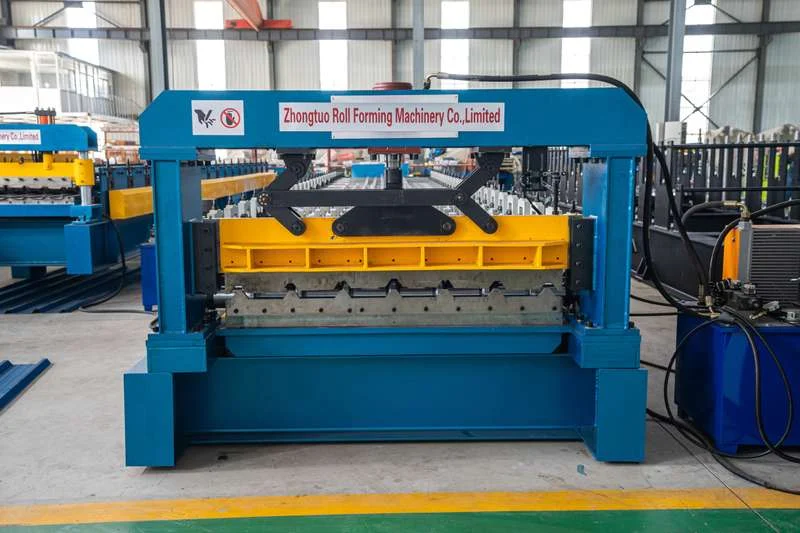

Metal Trapezoidal Tile Forming Roofing Sheet Making Machine is produced for Egypt customer,the features of this machine:
1.One machine can produce trapezoidal sheet.
2.One machine can use 1250mm width coil.
3.The finished product is absolutely flat after cut.
4.The voltage of this machine is 220V-60HZ-3P.
Application scenarios:
- Industrial buildings: such as factories, warehouses, sports halls, etc., color steel tile machines can quickly build light steel structure roofs.
- Civil buildings: The tiles produced by resin composite tile machines are both aesthetically pleasing and durable, suitable for residential and villa use.
- Special environment: PVC or APVC tile machines are suitable for highly corrosive and rainy areas, extending the service life of roofs.
Profile Drawing of Metal Trapezoidal Tile Forming Roofing Sheet Making Machine：
You can send us drawings to customize your own roll forming machine.
Technical parameters of Metal Trapezoidal Tile Forming Roofing Sheet Making Machine:
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:1220mm/1450mm(customized as drawing) |
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(give you as free） |
| 3.Main body | Roller station | 18 rows(As your requirement) |
| Diameter of shaft | 90mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | 400 H steel | |
| Drive | Chain transmission | |
| Dimension(L*W*H) | 12500*1800*1600(customize) | |
| Weight | 10.5T | |
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Motor Power | 7.5KW |
| Hydraulic system power | 5.5KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 15-20m/min | The speed is adjustable |
The following is detailed introduction of Metal Trapezoidal Tile Forming Roofing Sheet Making Machine：
Metal Trapezoidal Tile Forming Roofing Sheet Making Machine can produce roof sheets of different shapes，usually different countries have its own popular design ,we can customize the machine as customers’ demand,Trapezoidal metal roofing sheet machine is most popular in Egyptian market.
