metal embossing machine producing line

A metal sheet embossing machine line is always required for the production of raised or sunken designs or relief in sheet metal continuously from unrolling or uncoiling, embossing and recoiling.

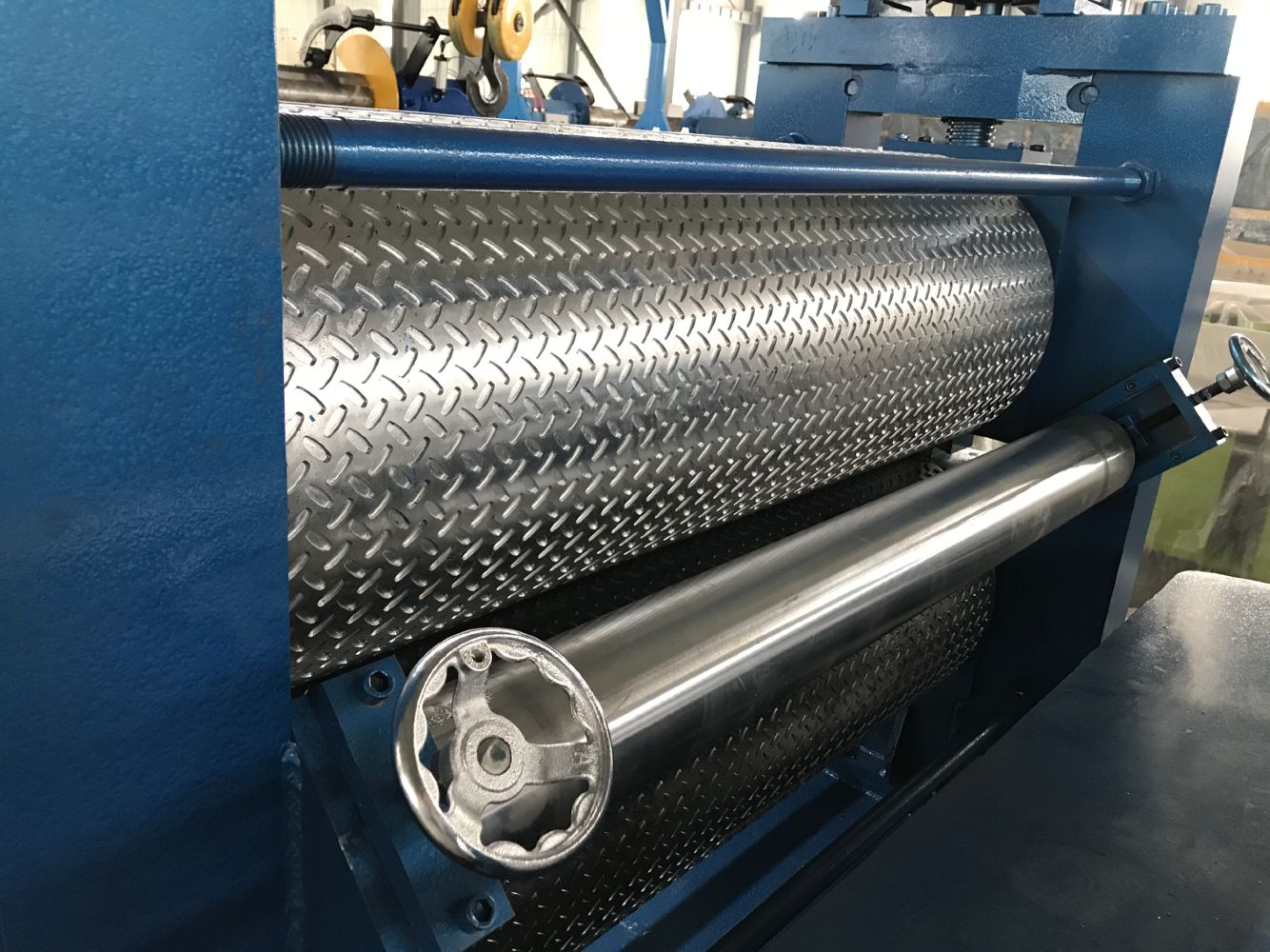

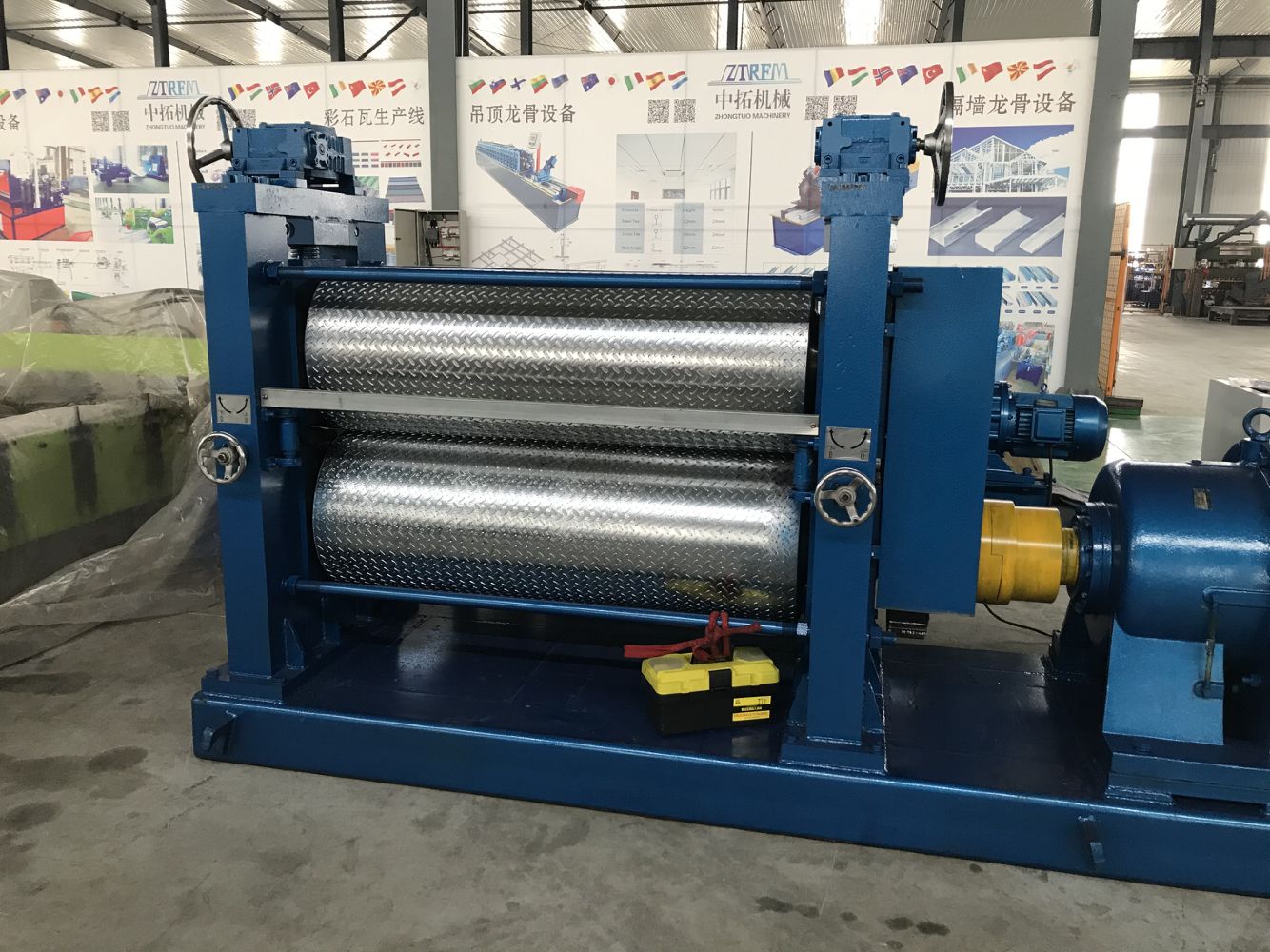

Metal sheet embossing is a stamping process to produce various designed patterns in sheet metal by passing the sheet in roll or a strip of metal between rolls of the desired patterns. Metal sheet or steel coil is fed into the male and female roller dies on a sheet metal embosser so that a pattern or a design will be engraved on the metal sheet.

Different designed patterns can be embossed by changing the designing of roller dies on the embossing machine. A metal sheet embosser produce the patterns on each every fed piece of metal sheets, while a metal sheet embossing machine line can produce designed patterns continuously on uncoiled or unrolled metal sheet and after the embossing process, the embossed metal sheet will be re-rolled or re-coiled for other purposes.

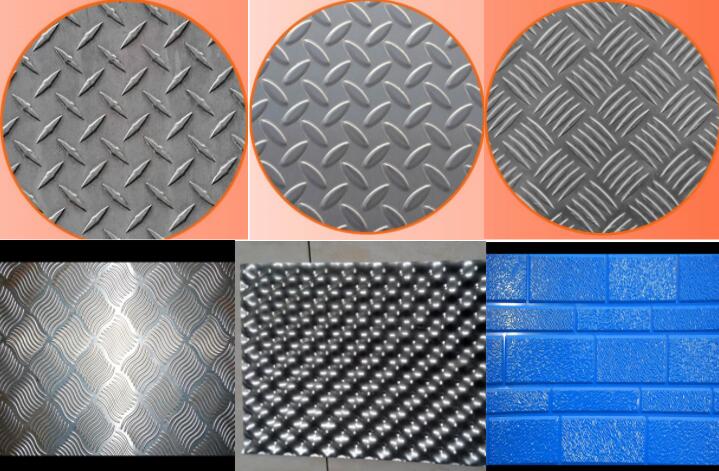

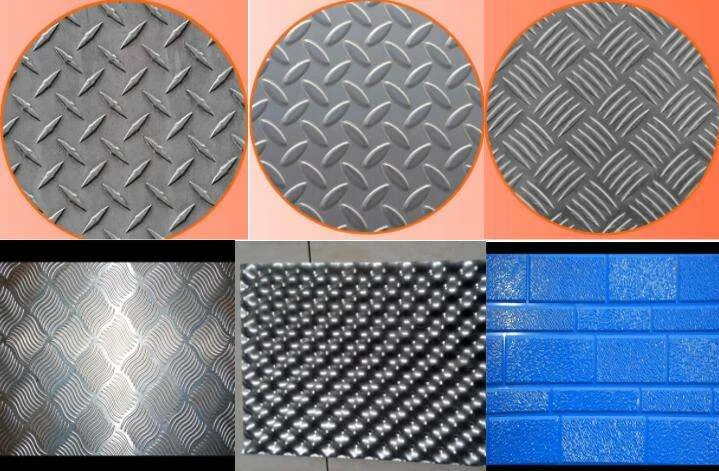

The rollers patterns can be customized

working flow:

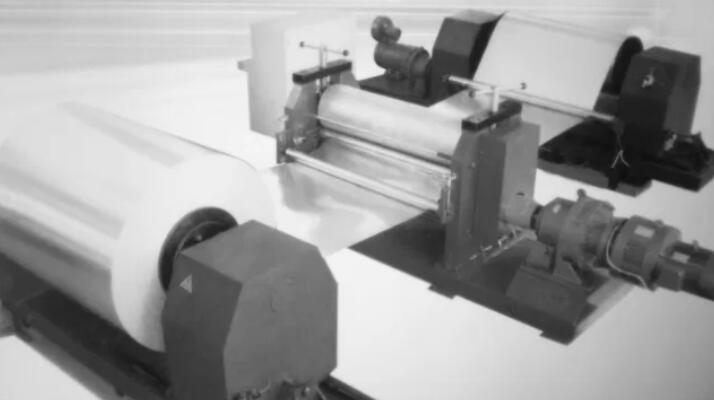

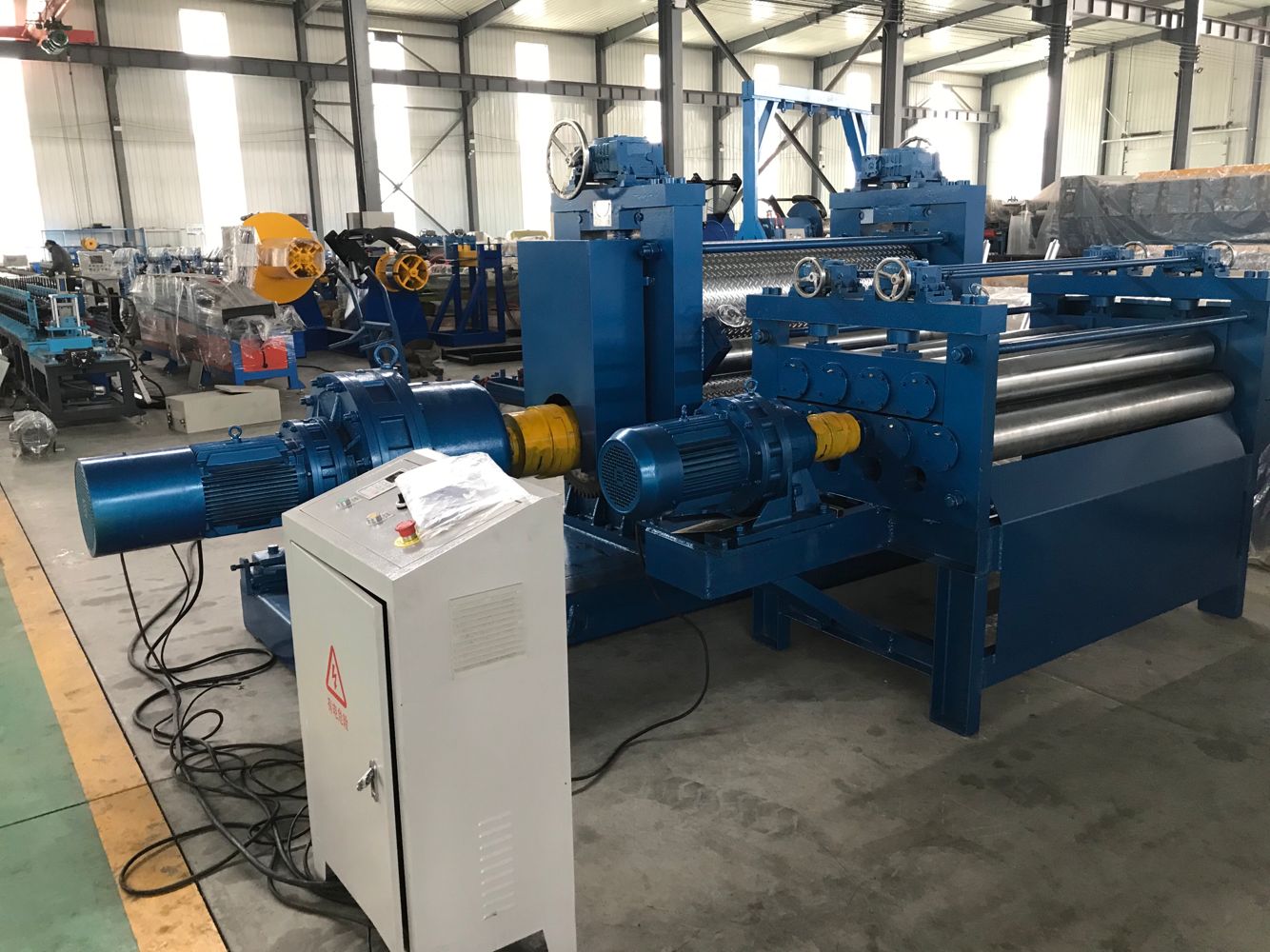

Decoiler-embossing machine-recoiler

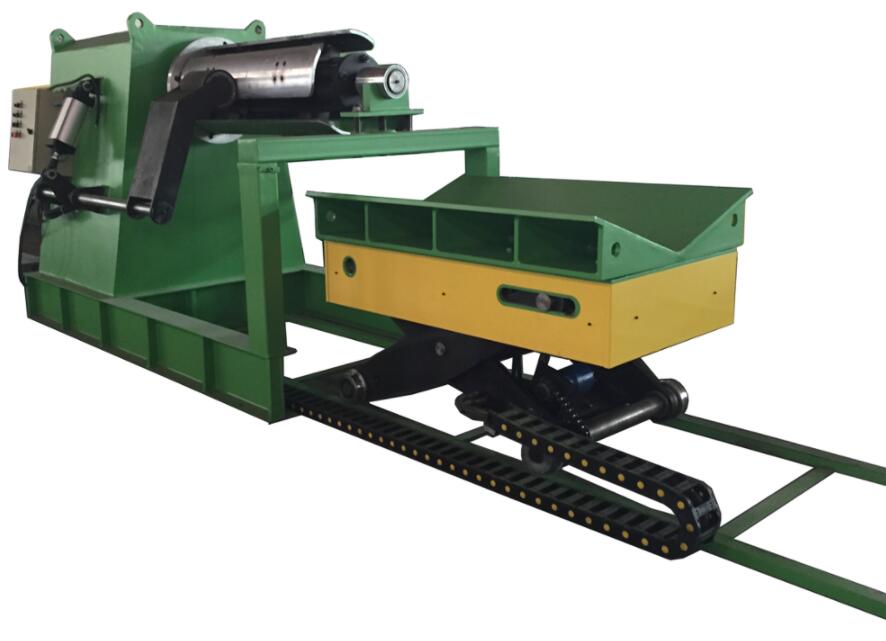

No.1 decoiler or recoiler

Motor power of uncoil	4-11KW
Power of hydraulic expansion	5.5-11 KW
Speed of uncoil	0-15m/min
Width of sheet	1250mm maximum
Thickness of sheet	3mm maximum
Weight of Coil	5-15T
Outer diameter of coil	1500mm
