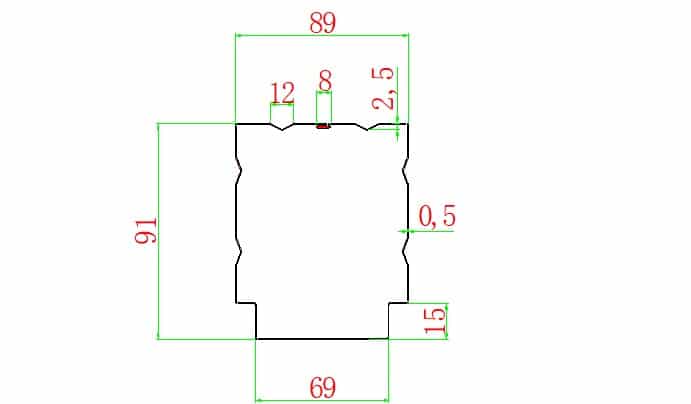

Equipment type Yx89x91mm
Expanded width 376mm
Working speed 8-10 m / min (excluding cutting time)
Pressed sheet thickness 0.4-0,6mm
Control method Panasonic PLC
Discharge rack 2 tons of manual discharge rack

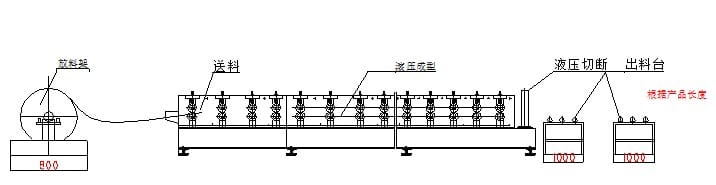

Number of molding roads 18
Roll material Gcr15 steel after finishing, quenching HRC58-62 ° C, surface chrome treatment
Shaft material and shaft diameter 45# steel finishing, shaft diameter ¢65mm
Host power 5,5kw
Shearing method
Length tolerance 3m ± 1.5mm
Voltage 380V, 50HZ, 3 phase
(Adjustable according to customer requirements)
Transmission mode 1,0 inch single row chain
Equipment form Wall structure
Equipment color company color
Equipment size length * width * height, 8, 5, m x1, 2 m * 1..0 m
