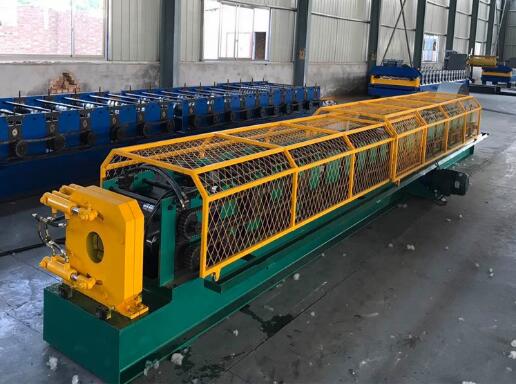

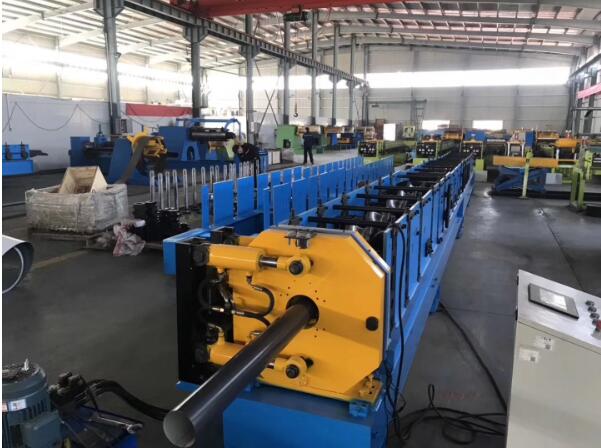

Metal downspout pipe cold roll forming machine

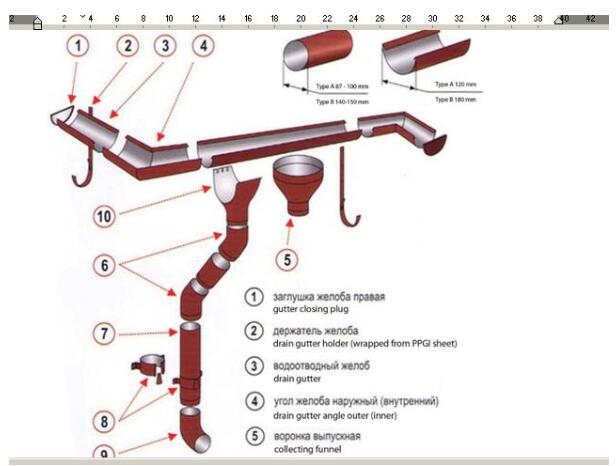

Downspout is uesd for collect rainwater and guiding it to the pipe that set to the floor, it belongs to downcoming system

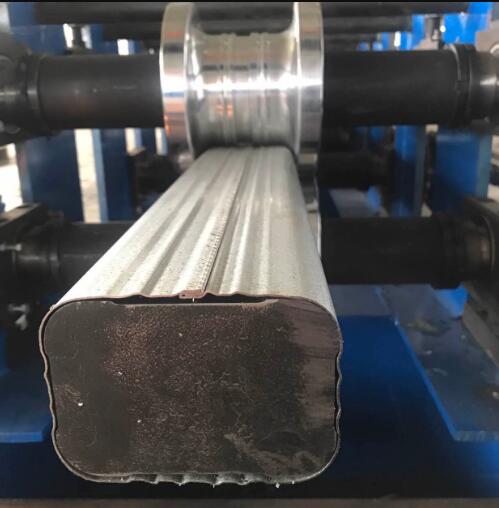

Normarly the downpipe consist of square pipe and circle pipe, but they are in the same roll forming way.
Metal downpipe machinery roll forming machine work process

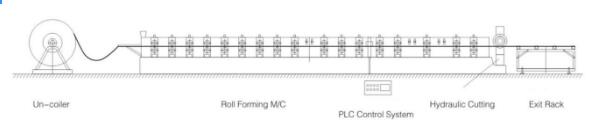

Uncoiling—main roll former—measure to length—fly saw cutting—product collect table

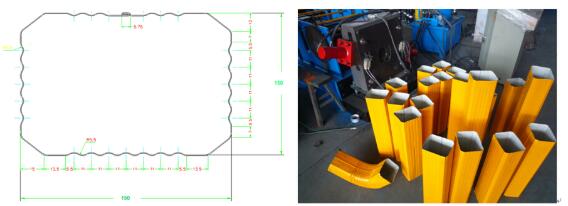

Product
raw material: GI/ MS
thickness: 0.3-0.8 mm
cutting length: adjustment
Technical parameter
| Series | Detail | Parameter |
| Decoiler | loading capacity | 3 Tons |
| Inner diameter | 450-550 mm | |
| Coil width | 400 mm | |

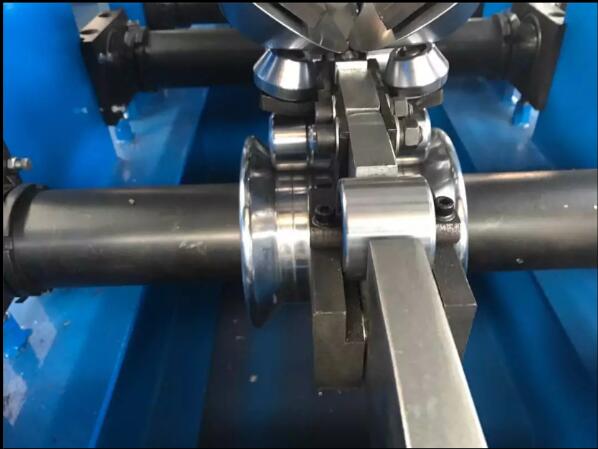

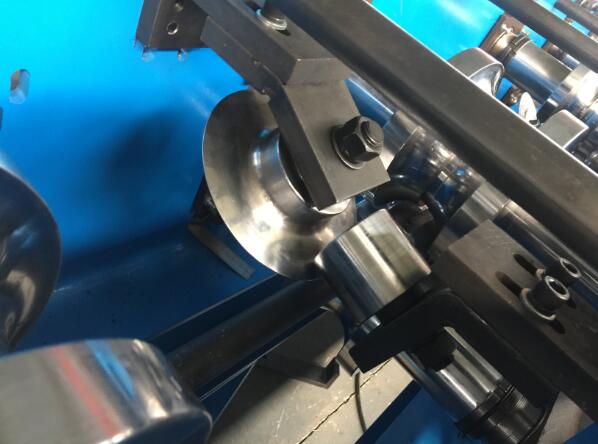

| Main roll former | Roller material | 45# steel with chromed treatment |
| Roller shaft material | 45# steel with quenched treatment | |
| Work speed | 8-15 m/min | |
| Machine structure | Middel plate welded structure frame | |
| Work power | 4 kw | |
| PLC control system | PLC brand | DElTA brand(also can change by your request) |
| Function | control the length and cutting quantity | |
| Cutting system | Cutting type | Hydraulic cutting |
| Motor power | 3 kw | |
| Run out table | Strcuture | Square pipe weled structure |
