ZhongTuo Machinery is experienced in designing and manufacturing K-Style gutters metal rain gutters roll forming machine. We have skillful technicians for our buyers in the purpose of guiding buyers to install and operate the machine as well as solving their problems. Our machine can make different sizes of K-Style gutters. And if you have your own requirement, just contact us and we will produce customized machines for you!
There is a video of the machine working process for your reference:

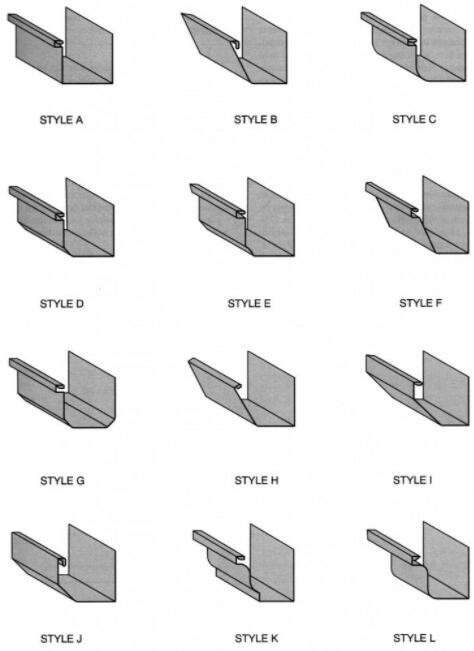

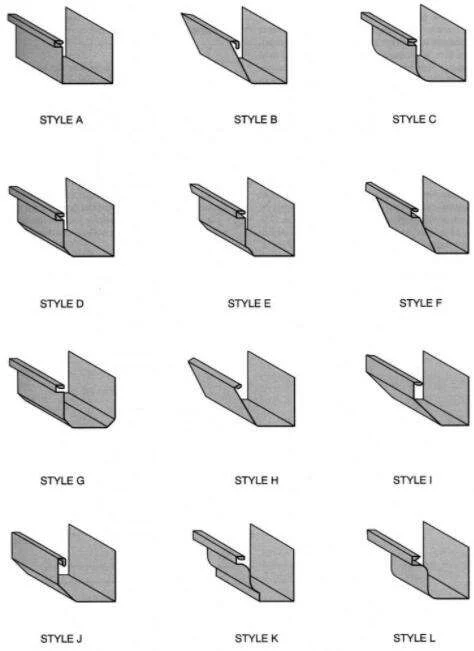

Here is a drawing profile of different sizes of K-Style gutters for your reference. We can offer professional CAD drawings for your requirement.

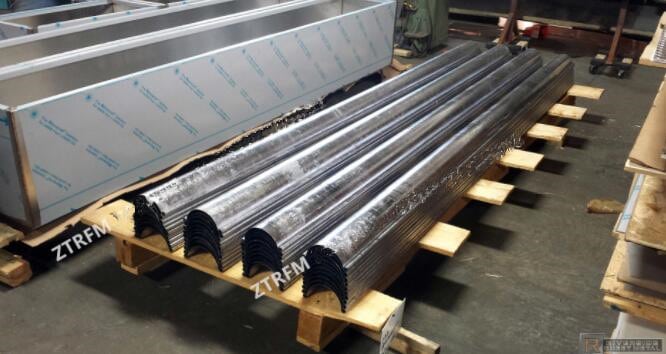

Final product of Metal gutter machine:

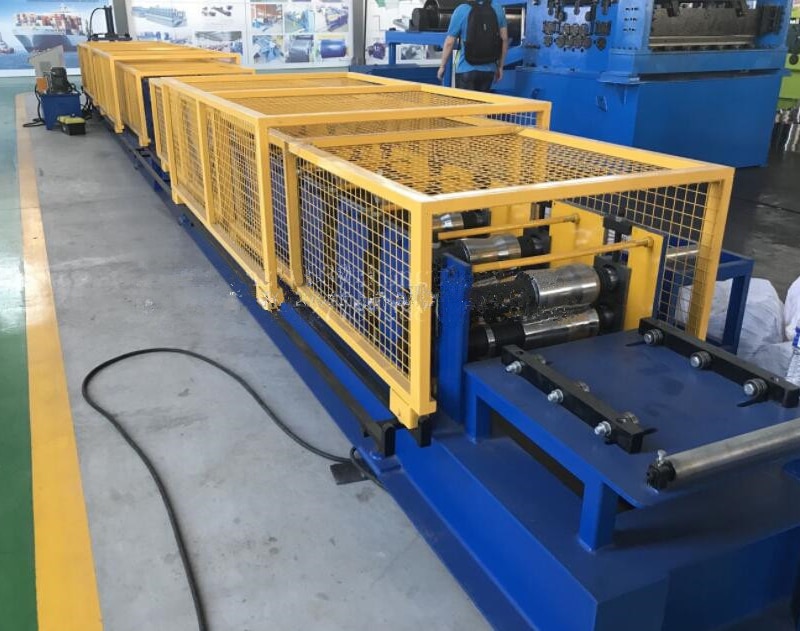

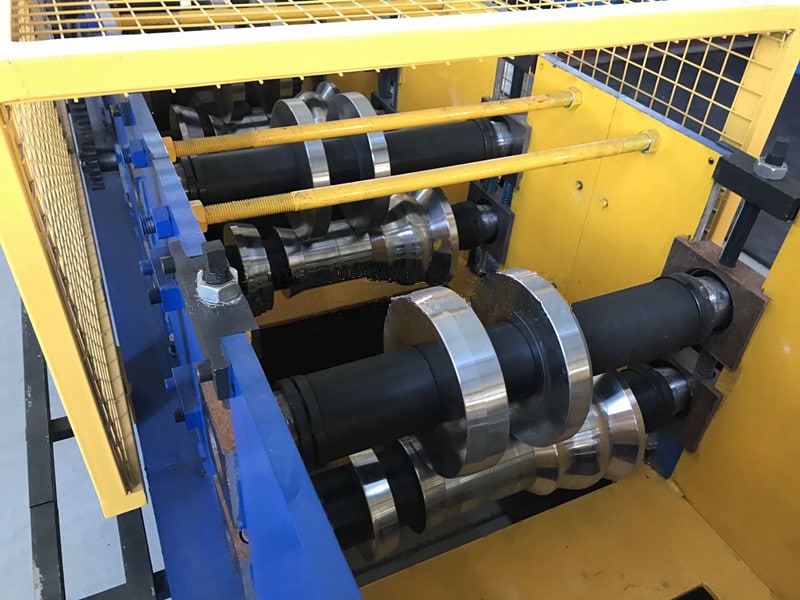

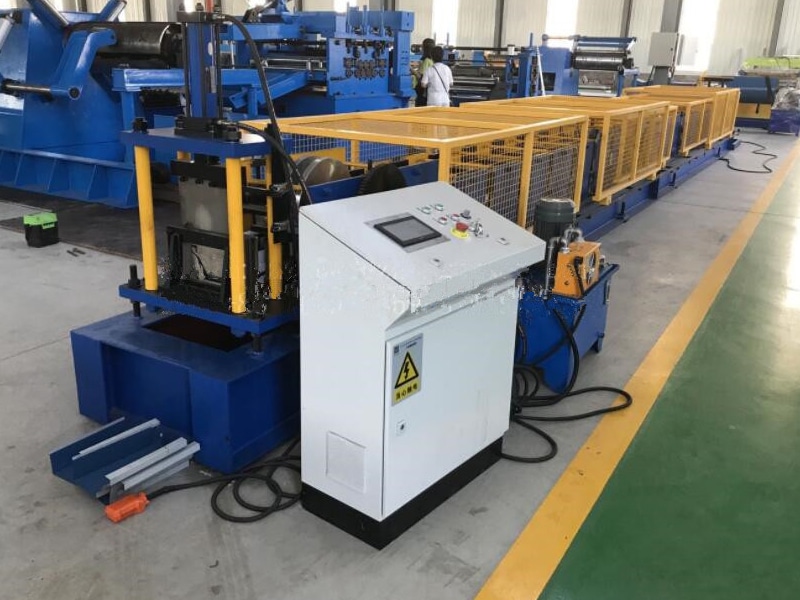

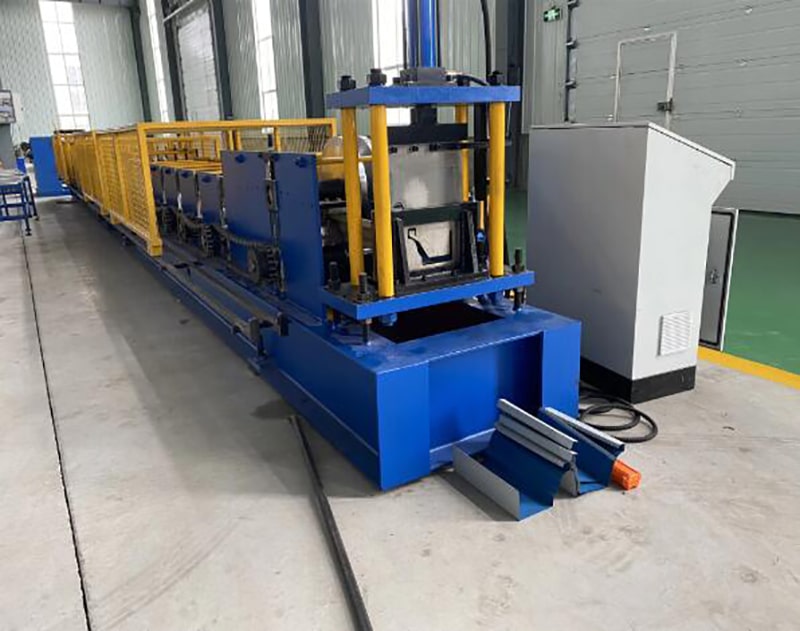

There several pictures of the machine for your reference:
Major specifications of ZhongTuo K-Style gutters metal rain roll forming machine for your reference:
1)machine structure:wall panel structure
2)Main power:8-9KW simens motor
3)Forming stations:22
4) Way of drive:1.0″single row chain drive
5)Diameter of shaft:80mm
6)Max rolling speed: 12-15m/min
7)Thickness: 0.3-0.8mm galvanized steel or prepainted sheet,G550Mpa
8) Material width:as request
9)Material of roller:polished and coated with chrome, surface with 0.05mm
10)Material of blade mould:Cr12, quenched 58-62℃
11)way of cutting:hydraulic mould cutting(stop to cut)
12)Length cutting tolerance:+/-1.0mm
13)Hydraulic pressure :16Mpa
14)Hydraulic power:5.5kw
15)Computer Control system:PLC control from Taiwan
16)Omron encoder measure the length ,made in Japan
17) Electrical requirement:380V,50Hz,3Ph
