This machine line is very save the labor force.this machine is full automatic, one machine finish many sizes. from 25mm-100mm, and 50-200mm .
also this machine is fly tracking cutting, speed is about 20-30 meter/min
Model Yx11x38mm

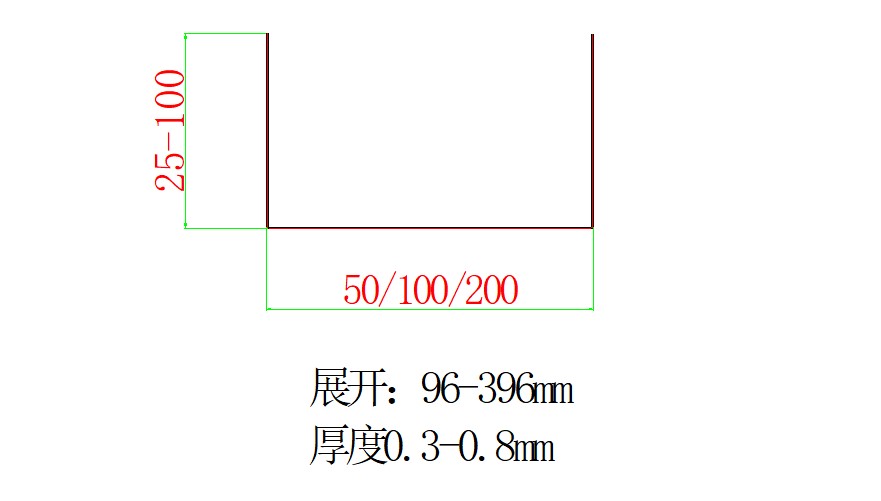

Feeding width 96-396mm
Speed 20-30 m/min
Thickness 0.4—0.8mm
Controlling Panasonic PLC
Manual 2 tons De-coiler 1 set
Roller station 12 stations
Post cutting 1 set
Roller material Gcr15 finish machining after quenching HRC58-62℃,chromium coating.
Shaft material and diameter 45# steel finish machining,
diameter is ¢65mm
Main power 7.5kw
Hydraulic pressure 12 Mpa
Cutting method Flying tracking cutting system
Cutting blade 3 sets of the cutting blade
Hydraulic power 4.0 kw
Blade material Cr12Mov, quenching HRC 58-62℃
Length tolearance 3m±1.5mm
Cutting system Servo tracking high speed cutting system
Servo motor 1.5kw
Voltage 220V, 60HZ,3ph
Can be customized according.
Transmission 1,2 inch single chain
structural Memorial archway
Color Company color
Delivery time 60 days
payment 30% as deposit,70% before shipping
Whole line parts
2 ton manual de-coiler 1 set
Servo tracking cutting system 1 set
Main machine body 1 set
Controlling box 1 set
Hydraulic station 1 set
The main features of each component:
Cutting device:
(1) Cutting method:The main machine stops,then the cutting blade cut after measure the length;After finishing the cutting, the main machine body runs, and go on produce.
(2) The cutting blade material:GCR12,after hot treatment quenching HRC58-62℃

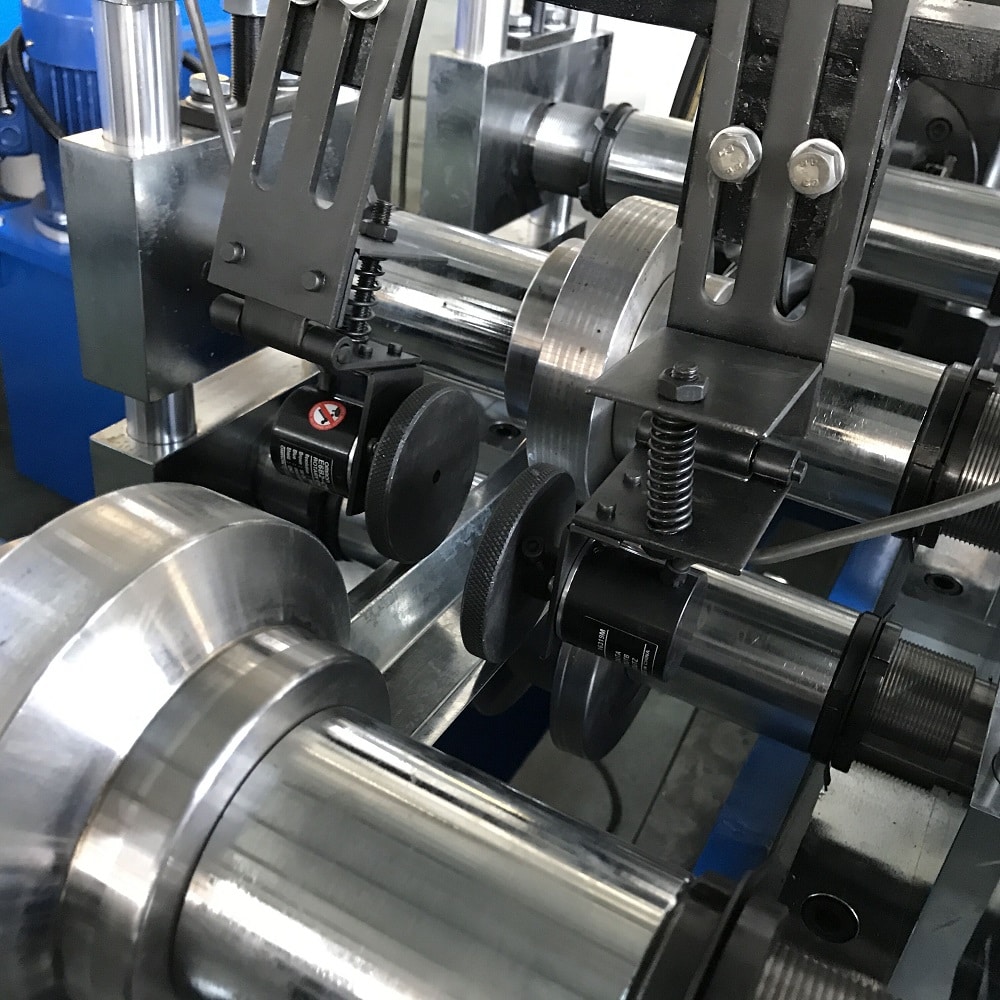

(3) Cutting length monitoring:Automatic length cutting
(4) Cut length tolerance:3±1.5mm
Controlling box:Panasonic brand
(1) Voltage:220V, 60HZ,3ph
(2) Automatic control length cutting
(3) Automatically count production
(4) The computer controls the length and quantity, and the control device automatically stops cutting to ensure the set production quantity.
(5) Accurately modify the length tolerance
(6) Control method: touch screen and button coexist
(7) Length unit: mm (length on the touch screen)

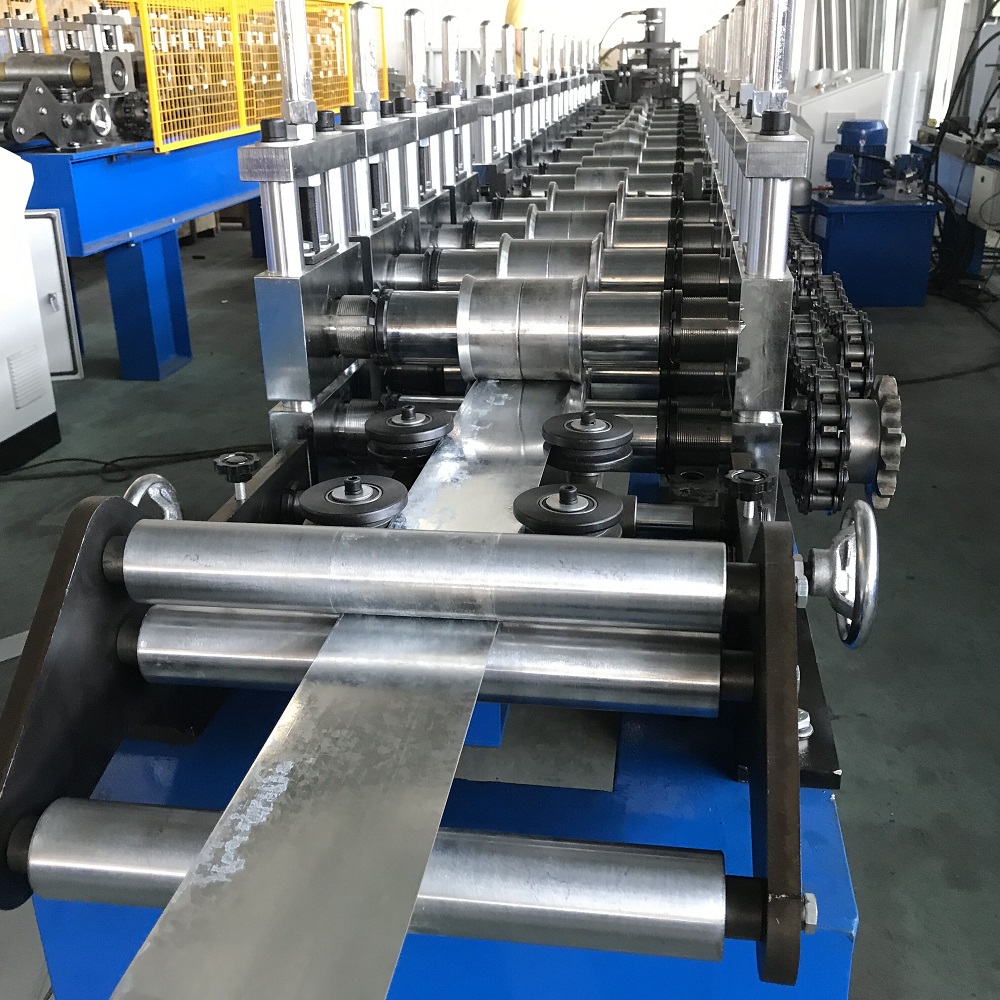

Forming machine body:
(1) The structure is simple and the appearance is beautiful. Because the whole machine adopts the steel structure and the whole processing after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable.
(2) Other important components of the equipment and components are used in well-known domestic enterprises, which effectively guarantee the performance of the equipment.
(3) It adopts fully automatic fixed length forming punching and cutting, precise positioning and positioning, and the shape of the head and tail is beautiful and tidy without deformation.
(4) The equipment is easy to install and debug, suitable for factory production.
(5) The equipment is low in noise and high in work efficiency.
Working process:
De-coiler–deeding—roll forming machine—post cutting system—receiving table
