1.Embossing designing.
2.Famous Brand Yangli Press punching the holes
3.Rollformer speed: If there is punching holes on the profile, speed is 30 m/min (High speed servo tracking fly saw cutting system.) If there is no punching holes on the profile, speed is 70 m/min

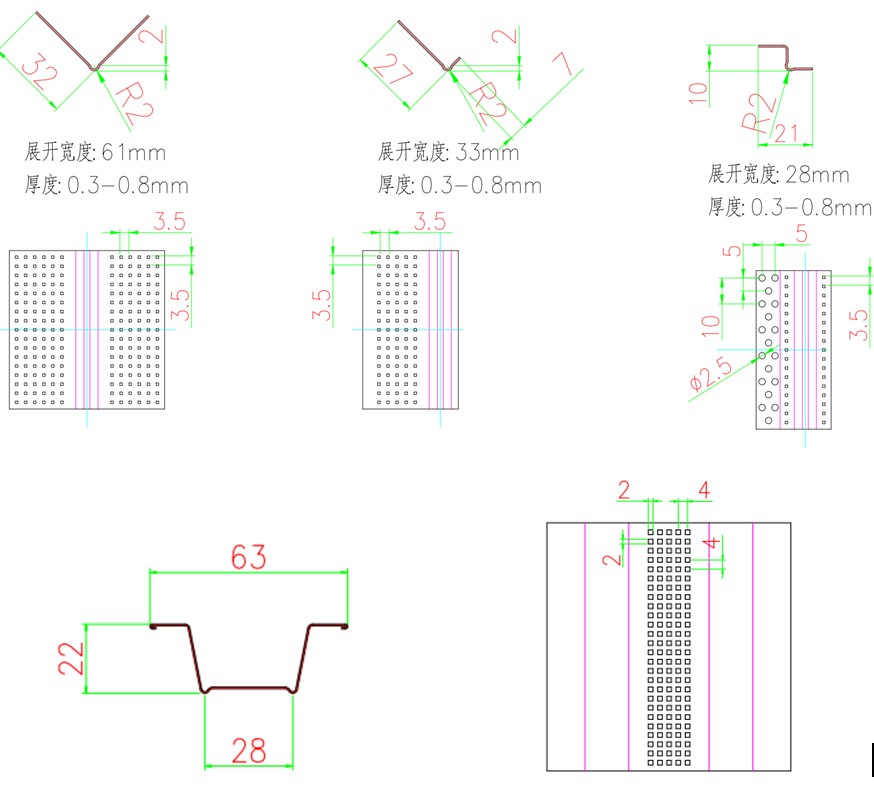

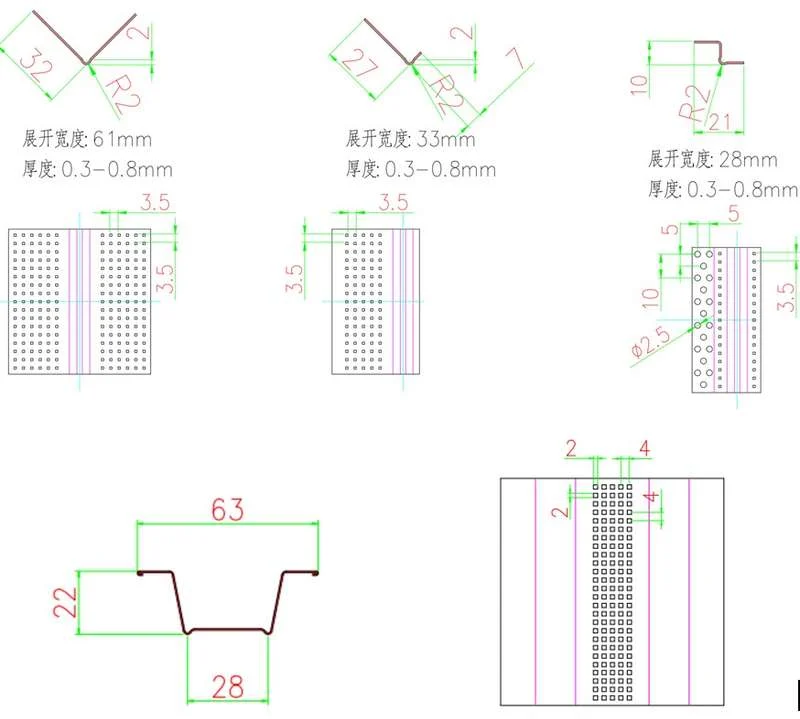

Model Yx27,32×27,32mm Yx10x21mm Yx22x63mm
Speed 70m/min【without punching holes】
30m/min【with punching holes】
Thickness 0.3mm-0.8mm
Controlling Siemens PLC
Manual De-coiler 1 ton Electric de-coiler
Feeding machine Pneumatic
Punching press Brand Famous Brand Yangli Press
Roller station 10 stations【yx27，32×27，32mm】
10 stations【yx10x21mm】
12 stations【yx22x63mm】
Servo motor tracking cutting 1 set
Roller material Gcr15 finish machining after quenching HRC58-62℃，chromium coating.
Shaft material and diameter 45# steel finish machining，diameter is ￠56mm
Main power 5.5 kw
Hydraulic press 12 Mpa
Hydraulic power 3.0kw
Blade material Cr12Mov， quenching HRC 58-62℃
Hydraulic pressure 12Mpa
Length tolearance 3m±1.5mm
Voltage 380V, 50HZ,3Ph
Transmission 1,0 inch single chain
structural Pillar structure
Color Company color
Size Length*Width*Height
5.5m*1,3m*1.0m
