The advantages of High speed roofing corrugated iron steel sheet roll forming machine
1.High speed:0-40m/min
2.Flying shear:Cutting without stop to improve the speed of the machine
3.Auto stacker which can receive the product after cutting,no need man power,save labor
4.Hydraulic automatic decoiler with loading car
Corrugated Iron Rolling Machine
Corrugated Iron Rolling Machine
|

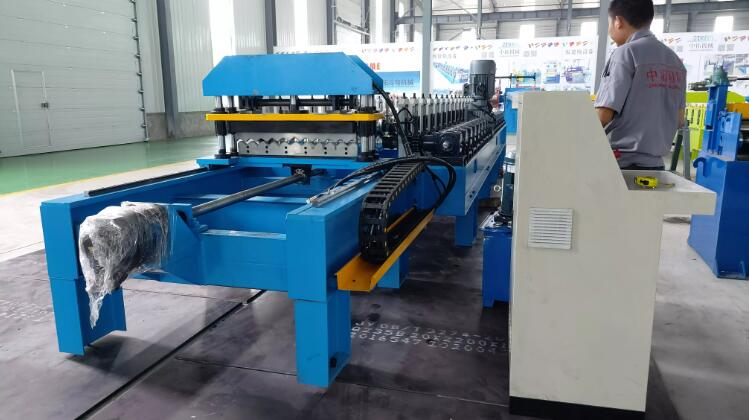

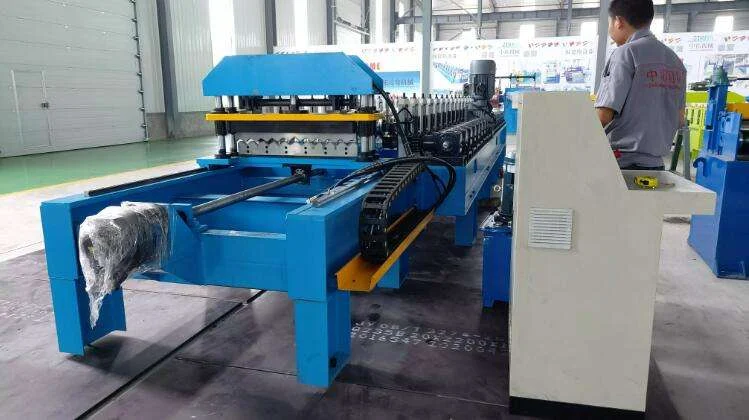

High speed roofing corrugated iron steel sheet roll forming machine
|
||||
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
16 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
8500*1600*1600(customize)
|
|||
|
Weight
|
9.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
5.5 KW+2.3 kw servo motor
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-40m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
(Corrugated Iron Rolling Machine)Cooperated brand

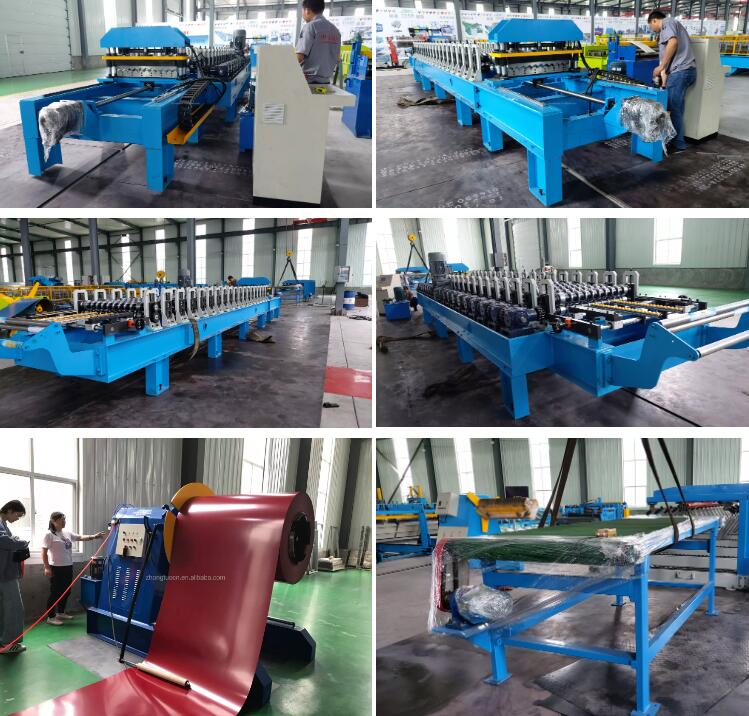

(Corrugated Iron Rolling Machine)Products Display
Corrugated Iron Rolling Machine

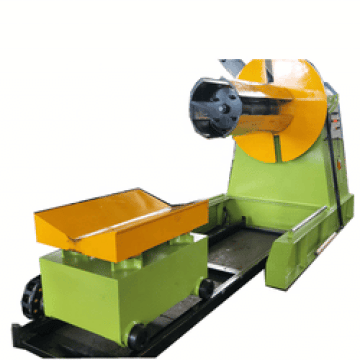

8 Tons hydraulic decoiler with loading car for coil

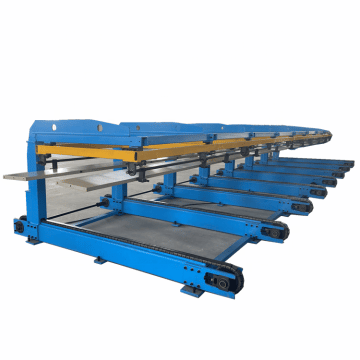

Auto stacker for steel roof panel roofing making machine
