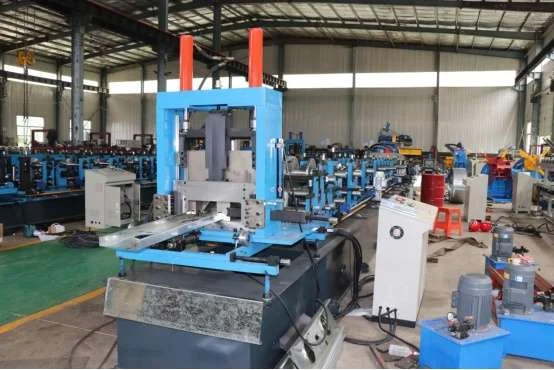

Grouting Keel Machine

The main function of the grouting keel machine is to produce grouting keels. The grouting keel machine uses strip steel as raw material and undergoes continuous cold rolling to produce various building profiles such as light steel keels, painted keels, and card keels, as well as cold bending and painted equipment. These devices are usually controlled by PLC to ensure production accuracy and efficiency.

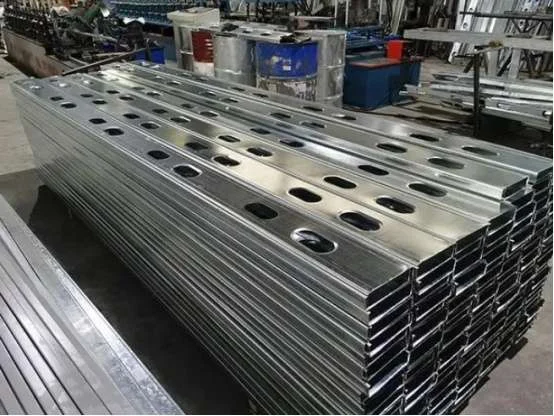

The pictures for the finished product:

Production process:

Uncoiler-Feeding material into machine→Roll forming→hydraulic cutting→ Products receiving

Packing list of the Grouting keel machine:

No.	Name	Quantity
1	Manual/hydraulic Decoiler	1 set
2	Main roll former	1 set
3	Control system	1 set
4	Hydraulic system	1 set
5	Product Run-out table	1 set

The technical specifications of the Grouting keel machine:

Item	Name	Specifications
1	Raw material	GI&PPGI
2	Raw material thickness	0.3-0.8mm
3	Decoiler	3T
4	Felt device	Available

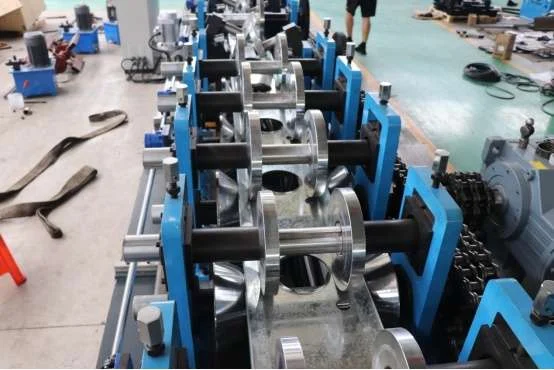

5	Roller station	12stations
6	Roller material	45# steel
7	Shaft diameter	40mm
8	Shaft material	45# steel
9	Transmission	By double chains
10	Motor power	5.5kw
11	Machine frame	Steel plate welded

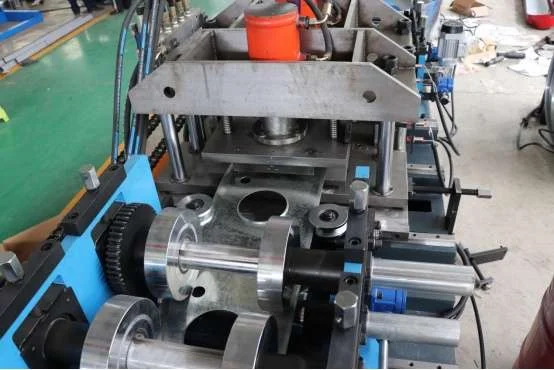

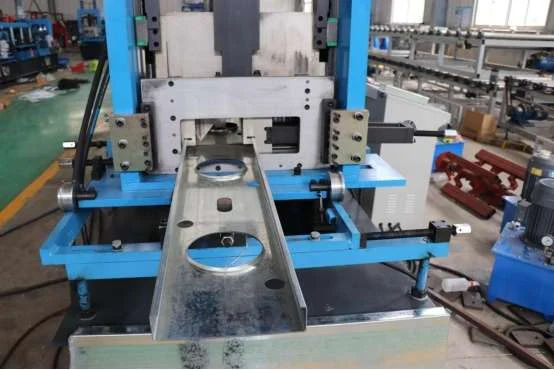

12	Cutting type	Hydraulic cutting
13	Hydraulic power	4kw
14	Cutting blade material	Cr12 quenched
15	Cutting tolerance	+/1mm
16	Control system	Delta/ Siemens PLC

The function of the Grouting keel machine:

1. High degree of automation:
Adopting fully automated production lines, with complete technical strength, high production efficiency, and good product quality.

2‌. Wide applicability:

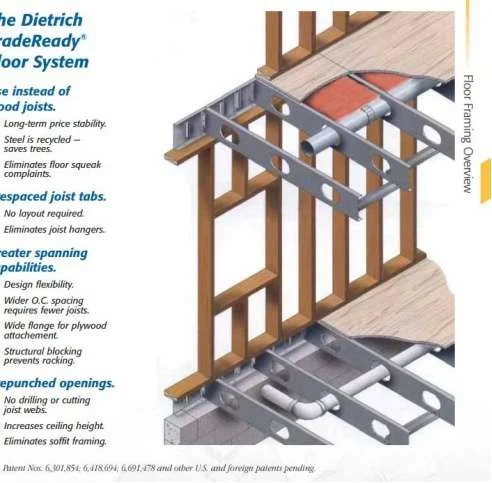

widely used in large space multi story and high-rise buildings, such as commercial buildings, office buildings, libraries, teaching buildings, hotels, hospitals, electronic component factories, etc.

3. Superior performance:
The grouted keel has high strength, good fire resistance, simple installation, and can assemble various types of gypsum boards, calcium plastic boards, sound-absorbing boards, etc. It has good sound insulation and thermal insulation effects.
