Description of Glazed Tile for Metal Roofing Roll Forming Machine

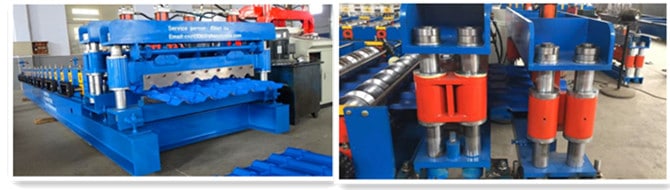

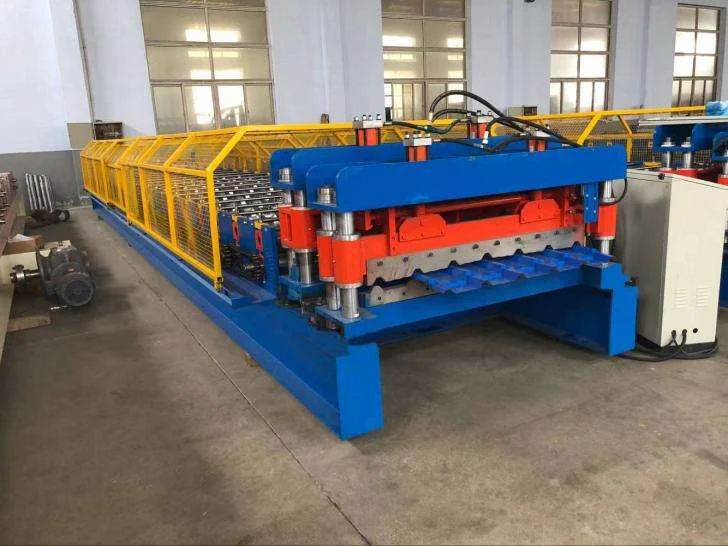

Compared with the ordinary ones, there is an extra hydraulic pressing equipment on the Glazed Tile for Metal Roofing Roll Forming Machine to press steps on the roll formed roof panels, which means a new challenge for machine design– the depth, distance and quantities of steps are not adjustable.
In order to solve this problem, our engineers build the hydraulic pressing between roll forming part and hydraulic cutter so that the depth, distance and quantities of steps can be adjustable and clients can change any time throught the touch screen on PLC control box.

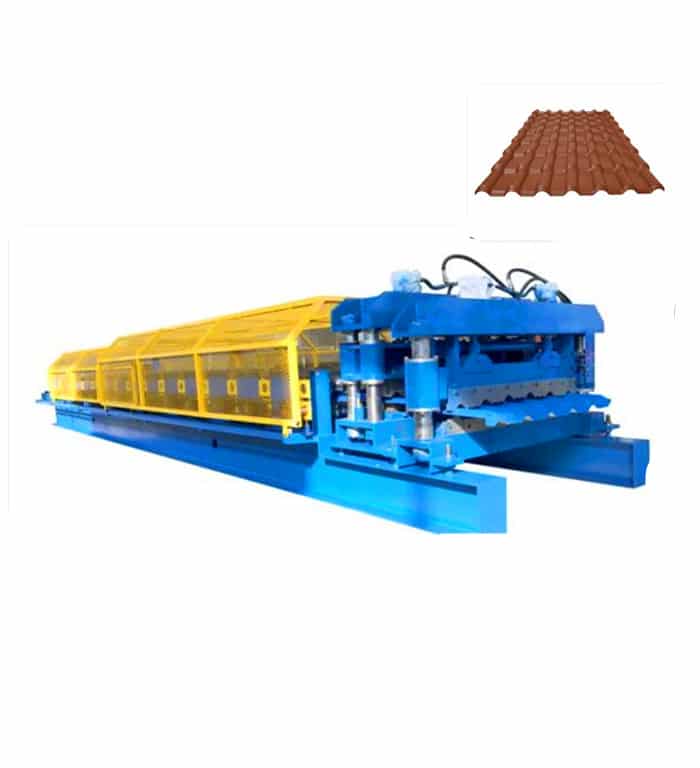

Here is a picture of the Glazed Tile for Metal Roofing Roll Forming Machine and its product.
Parameter of Glazed Tile for Metal Roofing Roll Forming Machine
Uncoiler/Decoiler: Manual type (hydraulic type is optional as per request);
Material of coil: Color bond Steel Coil; Prepainted steel coil
Thickness of sheet: o.3mm-o.6mm
Width of coil:1000mm-1250mm
Weight of coil: ≤ 5 mt
Roll Forming stations: 16-25 stations (subject to the technical drawing of step roof tiles)
Roller Diameter: 70mm-80mm
Main motor power: 5.5-7kw (subject to the technical drawing of step roof tiles)
Hydraulic power: 5.5kw
Forming speed: 0-5m/min (20 steps/ min)
Control system: Panasonic PLC with touch screen
Power supply: 380V 50HZ 3 phase

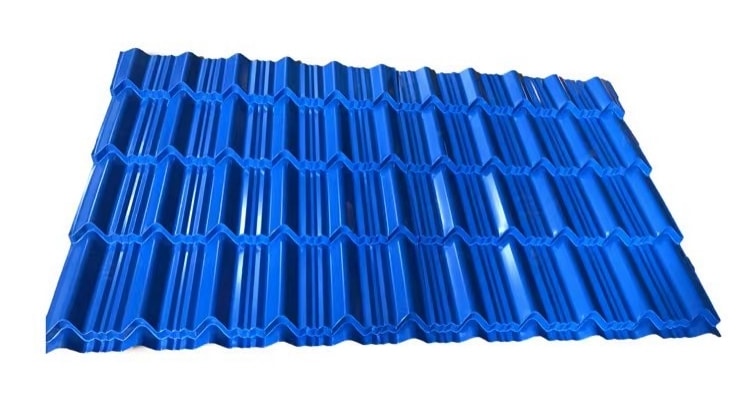

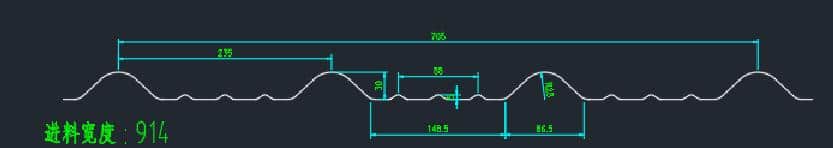

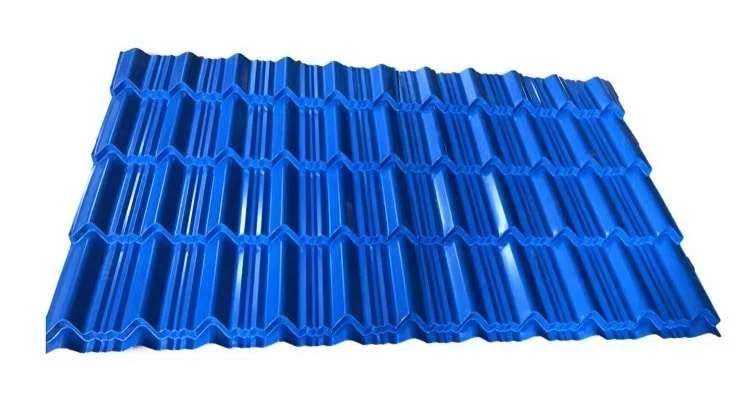

Here is a drawing profile and a picture of the product

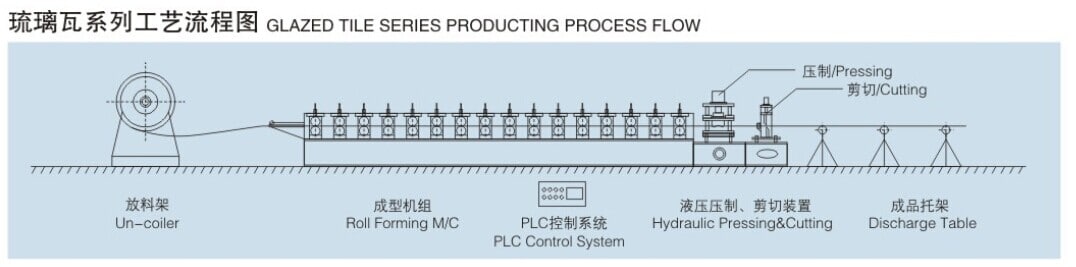

Working flow of Glazed Tile for metal roofing Roll Forming Machine
Decoiler→roll forming machine→ PLC control system →hydraulic pressing&cutting → discharge table
Advantages of Glazed Tile for metal roofing Roll Forming Machine
- High accuracy and high effeciency.
- Adjustablethe depth, distance and quantities of steps
- Numberedrollers, spacers and shafts for convenient maintenance
- Ball bearings inside for rollers’ same speeding
Types of Glazed Tile for metal roofing Roll Forming Machine

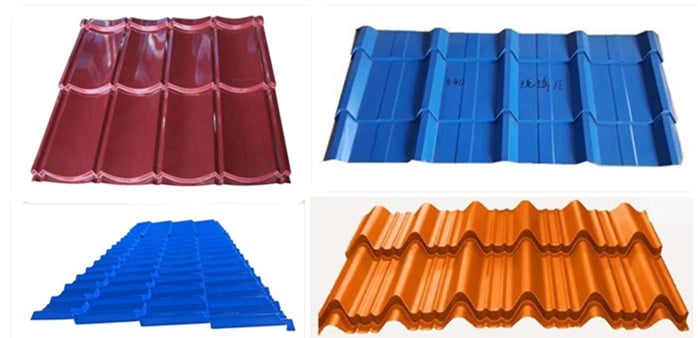

There are several types of glazed tiles, for example, Russian 1100 type is a very popular one, of course, if you have your own ideas, we can also provide private customization services according to your design. Here are some common patterns you can have a look.
Application of Glazed Tile for metal roofing Roll Forming Machine
The application of glazed tiles, especially stepped glazed tiles on the roofs of villas or some residential buildings has formed a new trend
