This floor deckingforming machine is mainly used for producing floor slabs, which are mainly used as structural support materials for floors and can be used in various types of buildings such as commercial buildings, industrial plants, warehouses, and residential buildings. It provides a stable support platform, allowing the floor to withstand weight and distribute loads.
The profile drawing:

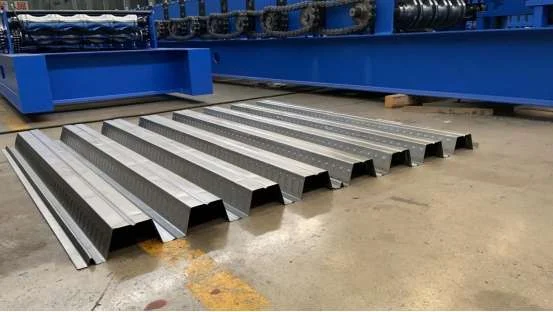

The pictures for the finished product:
Production process:
Uncoiler-Feeding material into machine→Roll forming→hydraulic cutting→ Products receiving.
Packing list of the floor decking forming machine:
| No. | Name | Quantity |
| 1 | Manual/hydraulic Decoiler | 1 set |
| 2 | Main roll former | 1 set |
| 3 | Control system | 1 set |
| 4 | Hydraulic system | 1 set |
| 5 | Product Run-out table | 1 set |
The technical specifications of the floor decking forming machine:
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.5-1.2mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 34stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 85mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By double chains |
| 10 | Motor power | 5.5kw |
| 11 | Machine frame | 400H steel |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 5.5kw |
| 14 | Cutting blade material | Cr12 quenched |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |

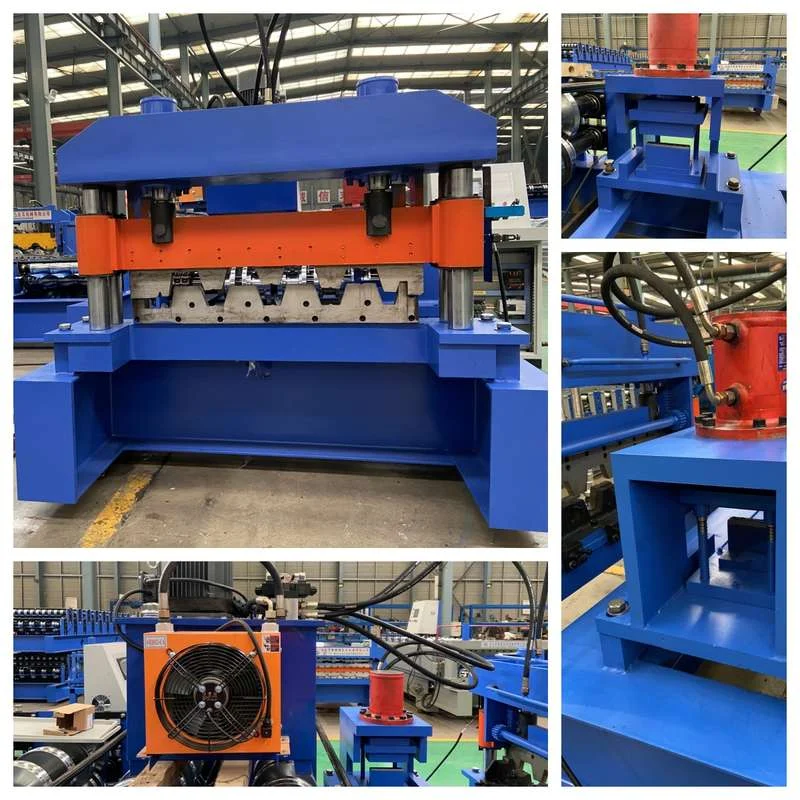

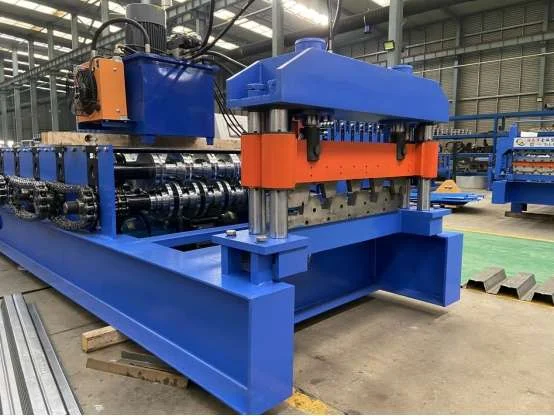

Some details of the floor decking forming machine:
