Maximum roll forming speed: not less than 15meters per minute

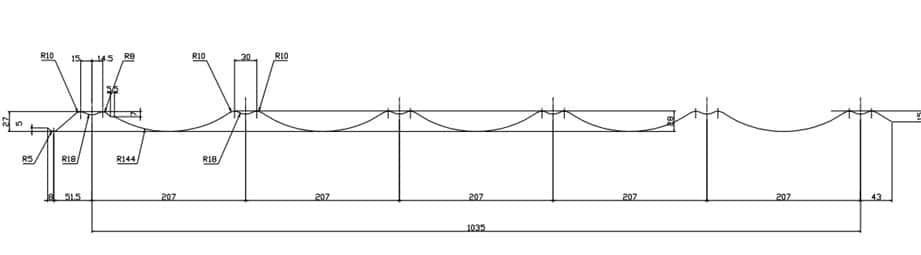

Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades.
l Material of the profile:Q195, Q235, GI or color steel
2 Thickness range: 0.4-0.6mm
3 Main motor power:5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China)
4 Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
5 Roll station: about 14 stations （according the final design）
6 Roller material:ASTM1045 chrome plated surface with chrome, CNC,
7 Shaft diameter: ￠76mm material: SAE1045 with quenching and tempering
8 Machine roll forming speed: 2-4m/min
9 Transmission: by chain, one inch
10 Roll former has leveling bolts in the base for adjust the leveling
11 Machine base frame adopt H beam welding steel
12 In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
13 Machine adopt metal wall as station
14To avoid accidents, all of drive part adopt protect cover
15 Color of machine: Blue and yellow (or base on customer request)
