Downspout roll forming machine is used to create accurate and well-sealed roof drain pipes. The leader pipe is for carrying rainwater from gutters. Metal down pipes have benefits like resistance to thermal changes in galvanized steel and recyclability, with great lifetime value.
Our downpipe forming machines are customized per customer needs and are pre-installed and tested. Customers can start production easily after receiving them, with instructions and videos provided. Technicians can be sent for guidance if needed, and the roll forming machine can work with the elber machine to curve flat pipes as required.
Customer drawing profile for your reference:
Working flow of the machine:
Basic information of Downspout Roll Forming Machine
1.3ton Decolier
| Power | 5.5kw |
| Roller station | 23 stations |
| Roller material | Chrome 45# steel |
| Roller fixer | 18mm middle plate |
| Shaft diameter | 70mm |
| Shaft material | Solid 45# steel |
| Speed | 10m/min |
| Drive mode | By chain |
| voltage | As request 380v/60hz/3p |
| Shearing way | Hydraulic method |
| PLC brand | Delta |
| Power resource | Lincoln |
| Langue | customized |

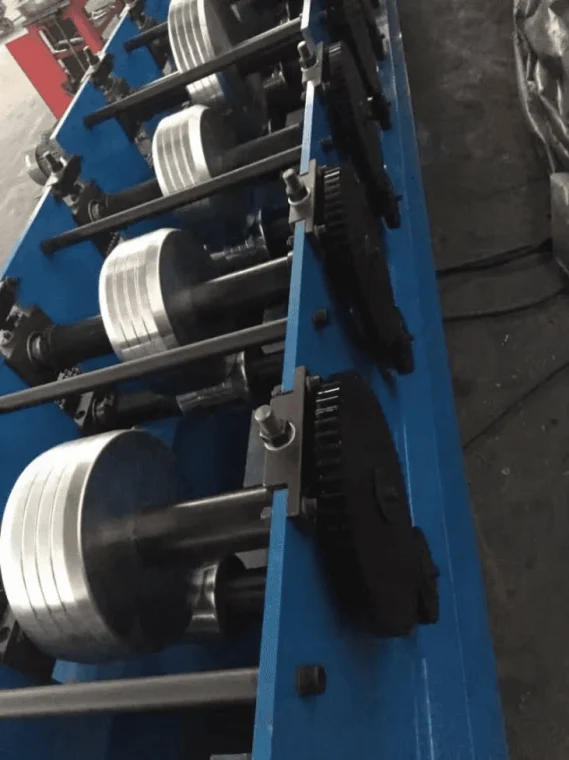

Machine pictures for your reference
Recommend related machine:
