The Cable Tray Roll Forming Machine is a specialized piece of equipment designed for manufacturing cable tray products. In the past, cable tray products were typically made using cable tray bending machines. However, nowadays, with the machine, cable trays can be produced both efficiently and with ease of operation.
This is the size of Cable Tray Roll Forming Machine
| bottom width | 100-150-200-250-300-350-400 mm |
| waist height | 50-100-150mm |
| thickness | 0.5-1.5mm |
| bottom width | The width difference between the bottom of the bridge is 1mm |
| waist height | 25-28mm |

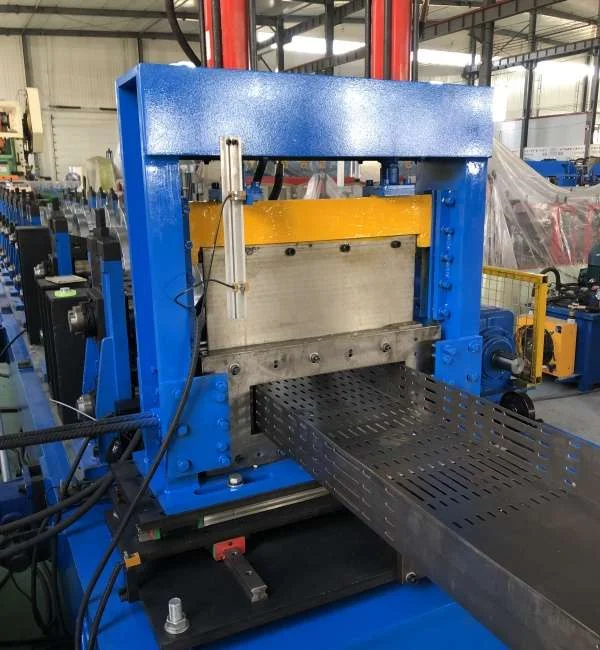

Picture of the machine
Here are some machine parameter for your reference:
| Roller station | 12rows(As your requirement) |
| Diameter of shaft | 65mm solid shaft |
| Material of rollers | 45# steel, hard chrome plated on the surface |
| Machine body frame | 400 H steel |
| Drive | Gearbox transmission |
| Dimension(L*W*H) | 12000*1800*1600(customize) |
| Motor power | 7.5KW |
| Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |

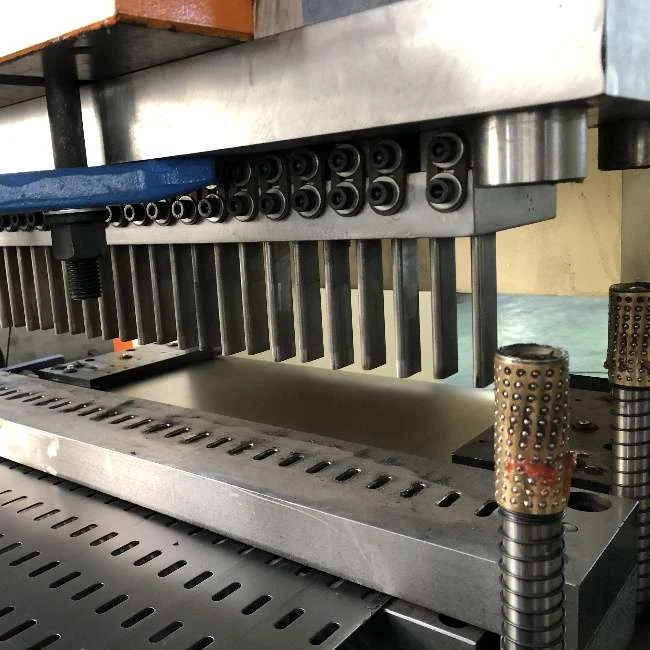

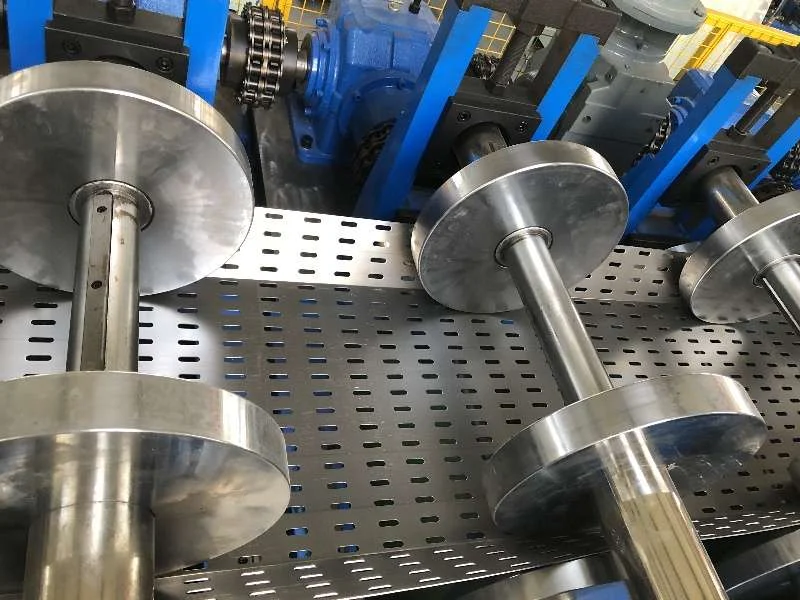

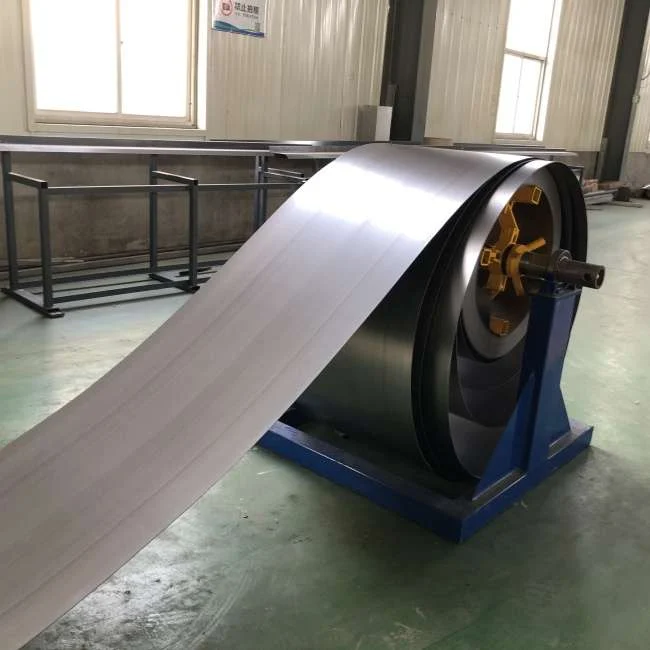

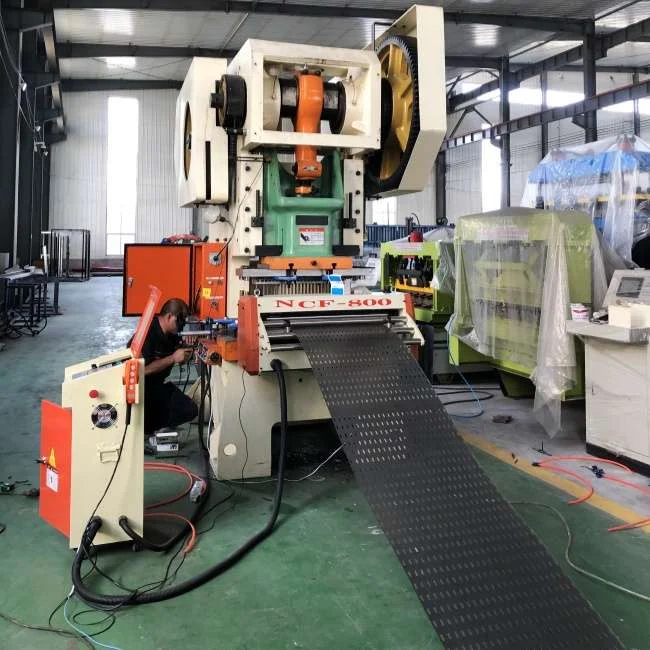

Some details of the machine:
