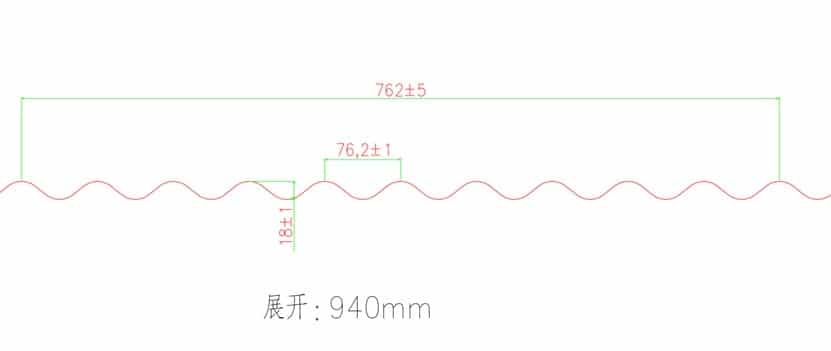

Model 762 roofing panel rollforming line
Speed 10-15m/min
Feeding width 940mm
Thickness 0.3-0.8mm

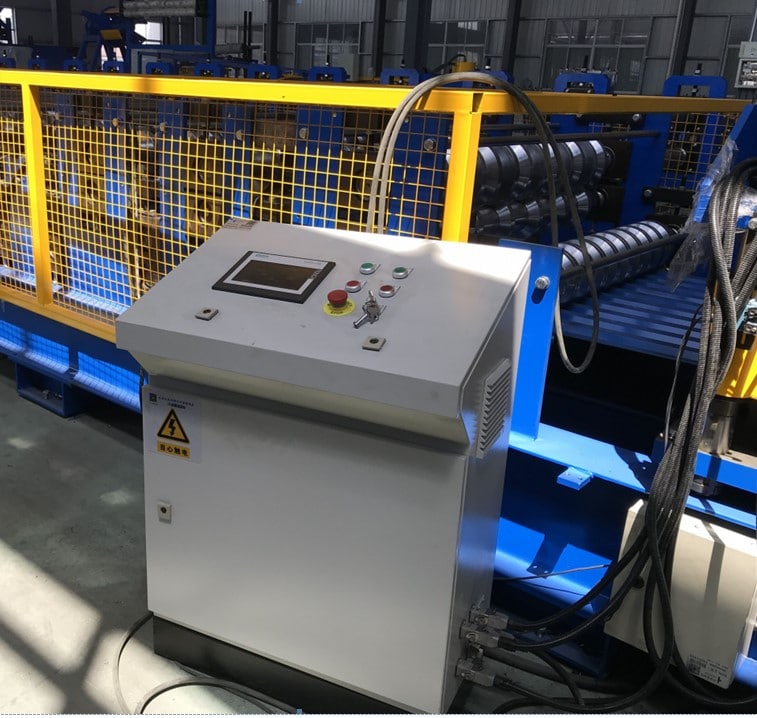

Controlling Panasonic PLC
Manual De-coiler 2 ton de-coiler
Roller station 16 stations
Post cutting 1 set
Roller material Gcr15 finish machining after quenching HRC58-62℃，chromium coating.
Shaft material and diameter 45# steel finish machining，diameter is ￠70mm
Main power 5.5 kw
Hydraulic press 12 Mpa
Hydraulic power 3 kw
Blade material Cr12Mov， quenching HRC 58-62℃
Length tolearance 3m±1.0mm
Voltage Australia standard voltage 415 V
Transmission 1,0 inch single chain

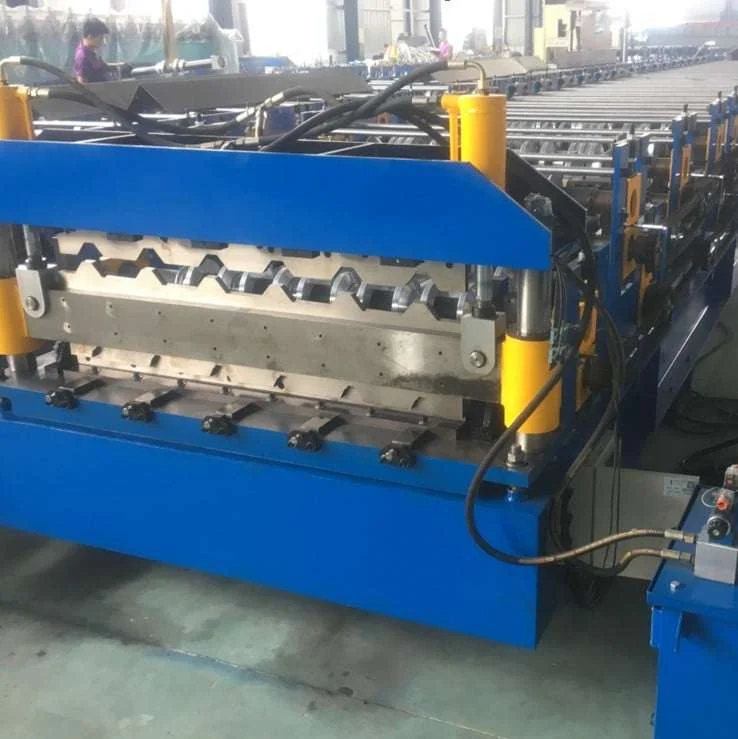

structural Middle plate
Color Company color (Blue and Yellow)
Length*Width*Height 6.5m*1,7m*1.5m
