The angle steel light keel roll forming machine rolls and forms angle steel light keels. It is efficient and suitable for industrial production. It ensures precision and quality, and is often used in the construction and decoration industries to provide reliable materials.
Angle steel light keel mainly has the following functions:
Protective function:

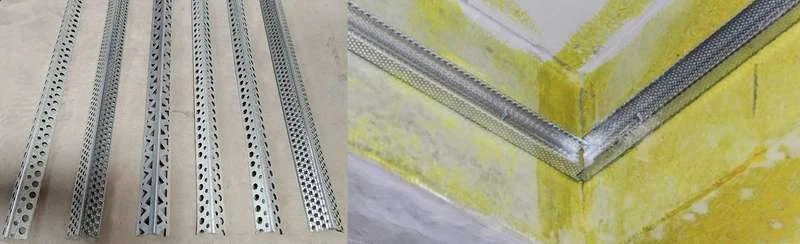

1.Protect building corners! Frequent collisions and frictions at wall and column corners can cause damage. Install protective angle light steel to safeguard corners from impacts and cracking.
2.Corner protection angle steel can wrap the sharp corner of a wall to make it rounded and reduce the injury people may suffer when colliding.
Reinforcement function
It can enhance the strength of corners and improve the stability of the structure by connecting with walls or columns.
Decorative Effect
Corner angle steel can be chosen in different materials, colors, and shapes, coordinating with the overall style of the building, enhancing the aesthetic appearance of the architecture.
The details of this ZTRFM high speed automatic angle steel light keel roll forming machine:

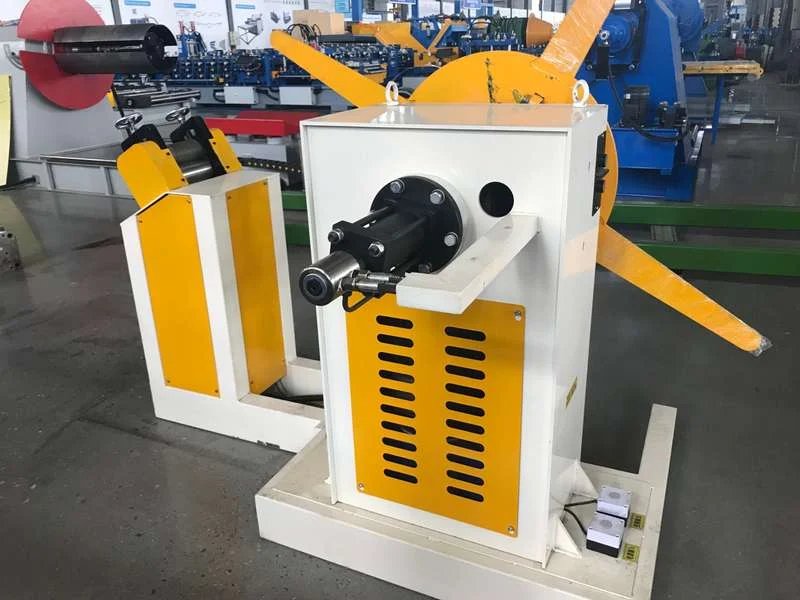

| Capacity | 3 tons |
| Coil width | max 1000mm, as customer’s request |
| Working type | hydraulic transmission |
| 4 support arms design | support the coil and prevent crease when uncoiling |
| With feeding guide device |

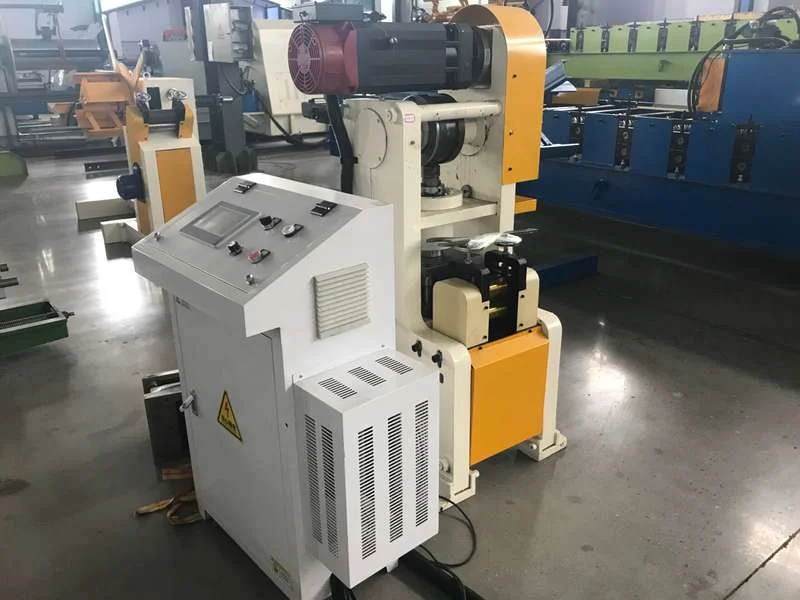

| the high punching speed | 120-200 times/min |
| Motor | 7.5 kw servo moto |
| Small size | saves space and small noise |
| Easy to change molds | |

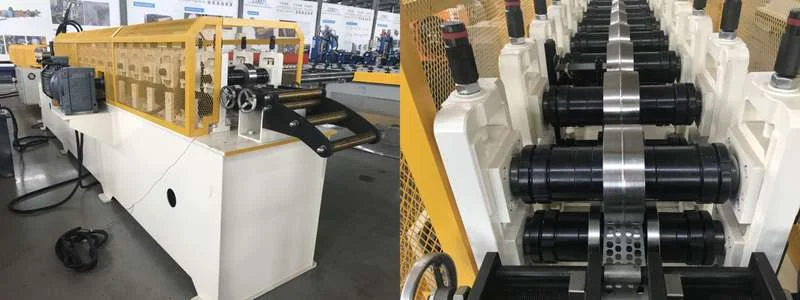

| Capacity | 25 tons |
| Frame structure | 35mm thickness arch frame |
| Roller station | 10 stations |
| Roller material | Cr12mov, finishing after quenching heat treatment |
| Transmission type | by chains |

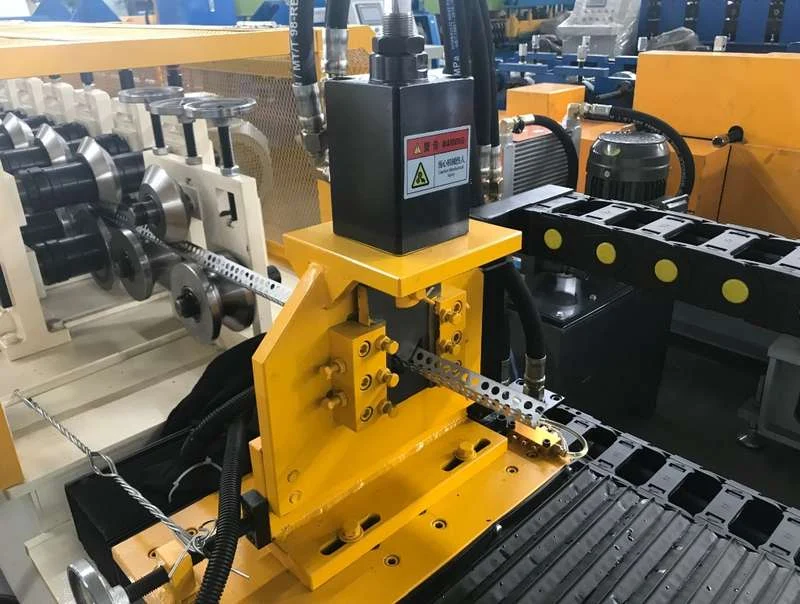

| Automatic hydraulic cutting controlled by PLC | |
| No-stop cutting design | moving by the servo motor |
| Material of cutting blade | GCr12Mov |
| With dust cover design |

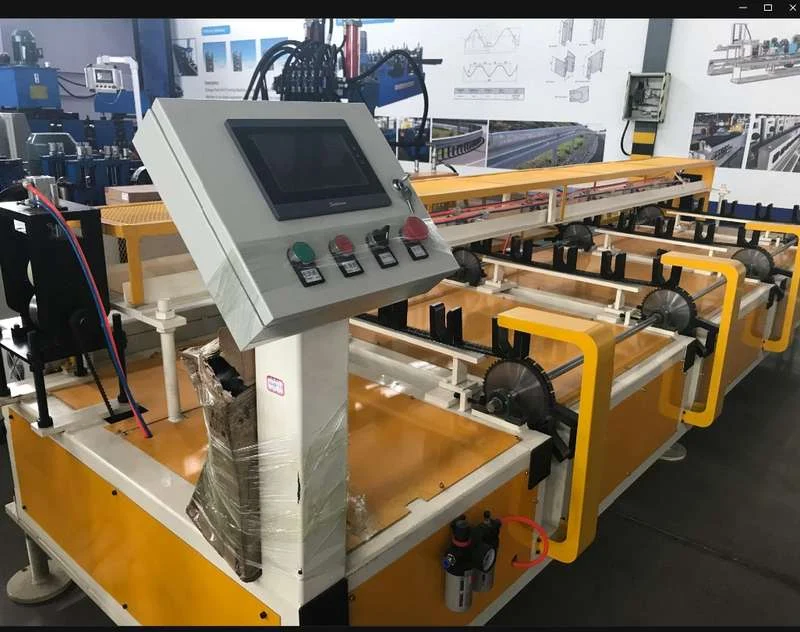

5.Automatic stacker
Automatic stacker is a useful device. It is suitable for use in areas with high labor cost. Moreover, it can match the whole high speed production line. Additionally, it has a separated control screen, which is more convenient for adjustment
