Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device
Main technical specifications
1. Coil Material: GI or Carbon Steel
2. Forming material thickness: 1.0-2.5mm
3. Decoil Type: Hydraulic Decoiler
4. Electric releasing coil, hydraulic expanding, tension
5. I.D: 508, 610mm
6.D: Max. 1500mm
7. Leveling Device: 2 Rollers pinch feeding, 7rollers leveling
8. Leveling roller diameter: about Φ 90mm
9. Leveling motor power: 0KW
10. Feeding Type: Servo Feeding
11. Servo motor power: 3KW
12. Punching Type: Punch Machine
13. Punching Die: Cr12 Mov, quenching process
14. Punching Die size: according to drawing
15.Punching Power: 15KW
16. Punching controlled by PLC
17. Cutting: Hydraulic pre-cutting
18. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
19. Hydraulic Station Power: 15KW
20. Shaft Material: 40Crhigh grade Steel tempering treatment (HB220-260)
21. Shaft Diameter: Φ 85mm
22. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
23. Forming Station: 18 stations
24. Forming Speed: 0-15m/min
25. Forming Motor: 15KW
26. Size adjustment: electrical power adjustment
27. Drive type: Chain drive
working flow chart
Decoiling — Guiding & Leveling — Punching — Hydraulic Pre-Cutting — Roll Forming — Run-out Table
Main components
| Components of Cable Tray Roll Forming Machine | Quantity |
| Hydraulic Uncoiler | 1 Unit |
| 7 Rollers Leveling | 1 Unit |
| Servo Feeding | 1 Unit |
| Punching Machine | 1 Unit |
| Hydraulic Pre-Cutting | 1 Unit |
| Main Roll Forming Machine | 1 Unit |
| PLC Electrical Control Board | 1 Unit |
| Hydraulic Stations | 1 Unit |
| Run Out Tables | 1 Unit |

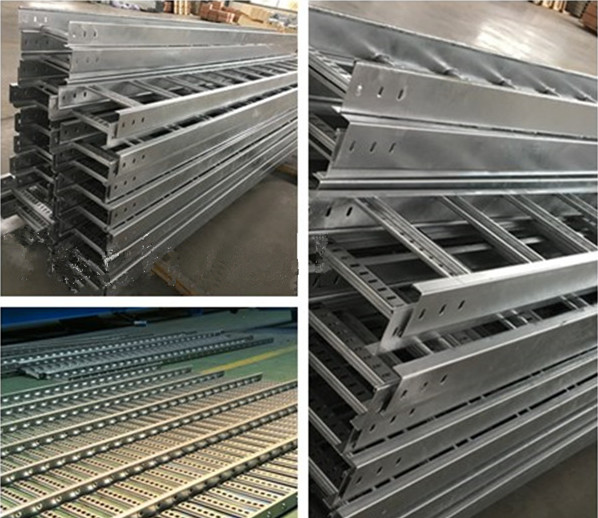

the finished product of the cable tray roll forming machine
The advantages of the cable tray roll forming machine
1.High Quality
2. Reliable and Durable
3. Reasonable Price
4.Good after-sales Service

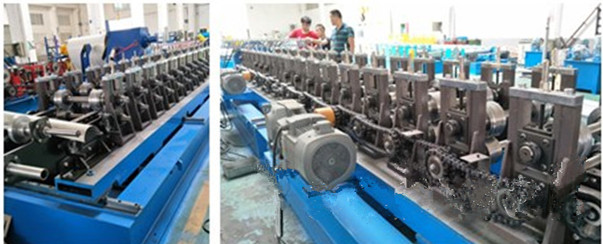

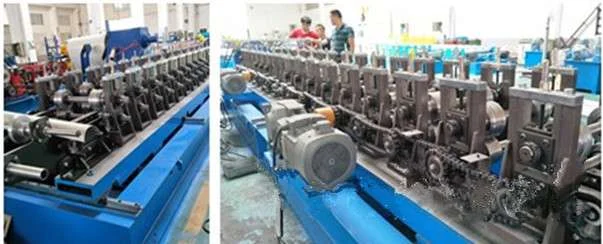

More machine pictures
