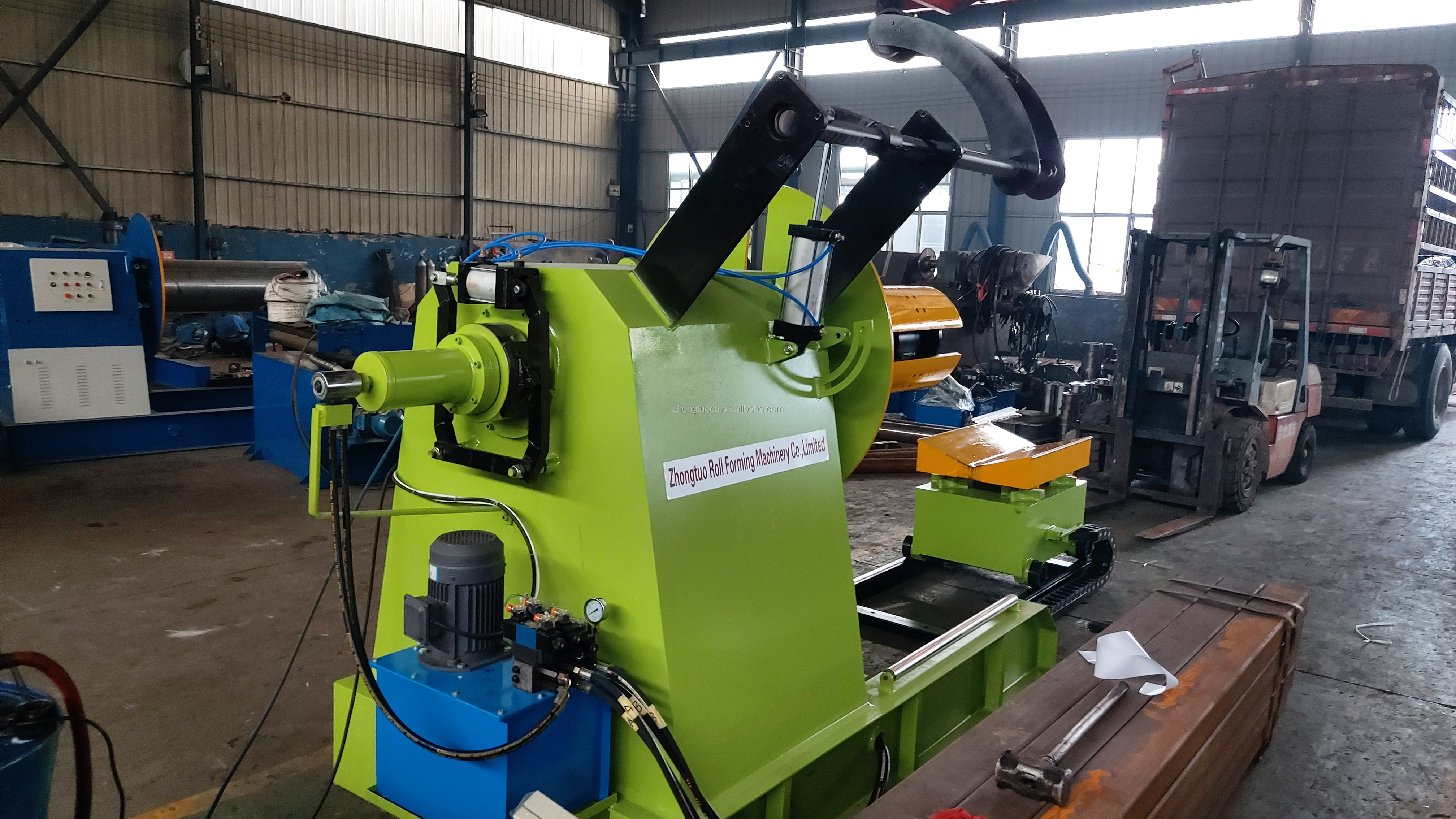

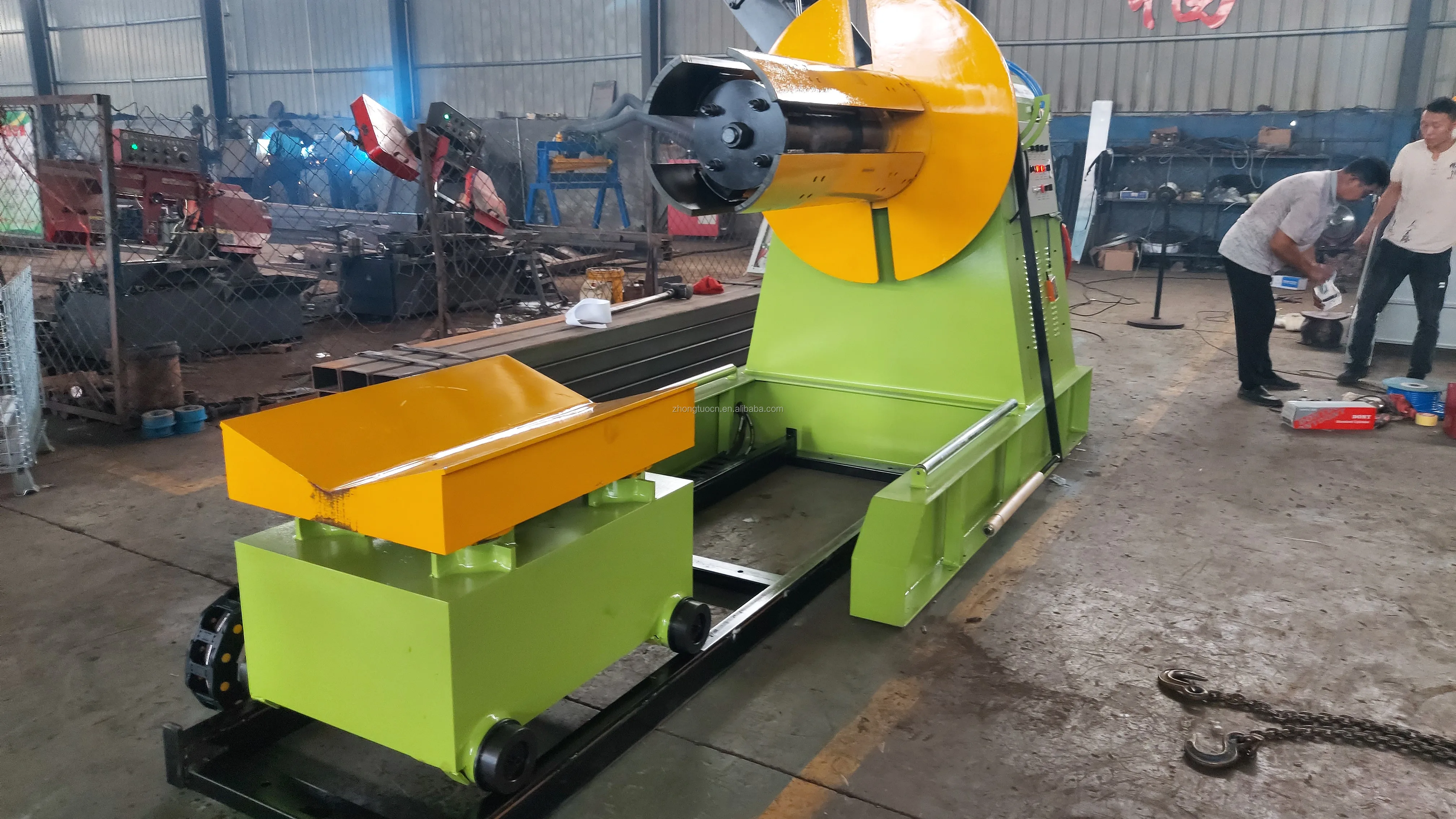

8 Tons hydraulic decoiler with loading car for coil
Video Description
8 Tons hydraulic decoiler with loading car for coil
1. Mechanical turning system, no reverse phenomenon.
2. Four rollers mechanism to ensure smooth operation of the equipment.
3. The roller and the turning base are equipped with safety protective covers to ensure the safety of personnel.
4. With over-current protection device, if the turning machine exceeds the maximum weight of turning,
it will automatically power off and stop protection without damaging the motor.
5. Equipped with French Schneider air switch, including overcurrent, overload, short circuit and phase loss protection functions.
6. Equipped with a remote storage box, the remote switch and cable can be put into the storage box when not in use. Prevent safety hazards caused by exposure.
7. The inner bearing of the roller adopts solid self-lubricating copper sleeve bearing, which is wear-resistant, high-temperature resistant,
and graphite lubricated without oil, and the radial bearing capacity is greater.
8. The control system adopts 24V safety voltage to ensure the safe operation of employees.
9. The electrical part adopts leakage protection circuit breaker, overload circuit breaker,
and overcurrent protection contactor to effectively prevent the potential safety hazards caused by leakage and overload.
10. With sound and light alarm device to effectively remind employees of safe operation.
11. Using multiple limit switches and mechanical protection devices to ensure safe operation.
Technical parameter for 8 Tons hydraulic decoiler
| Description | Sepcification |
| Hydraulic motor power | 3 kw |
| Bearing weight | 8T |
| Max feeding width | 1250 mm |
| Coil inner diameter | 450-550 mm |
| Total self weight | 1 Ton |
Application
The decoiler finds application in various industries.

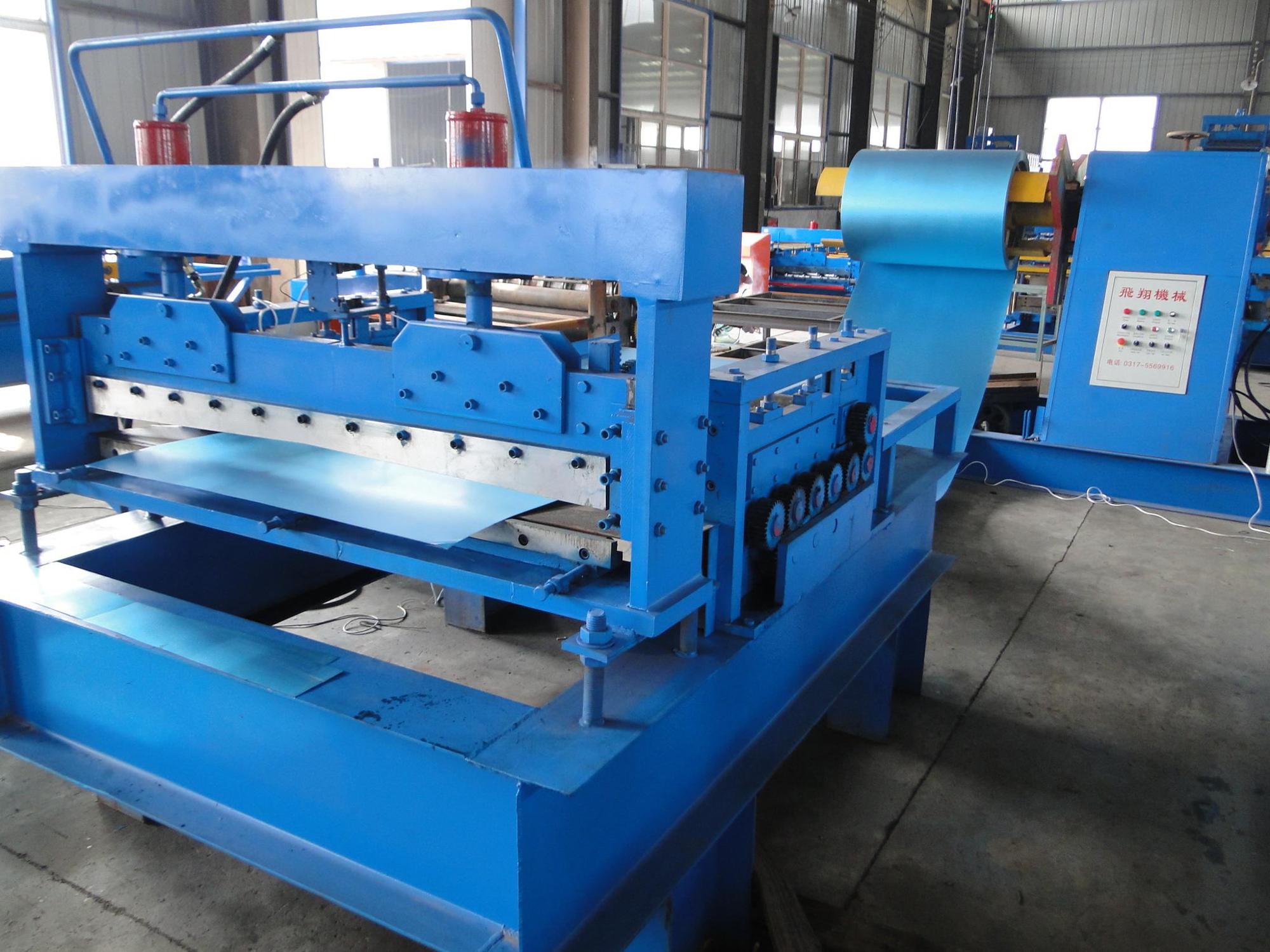

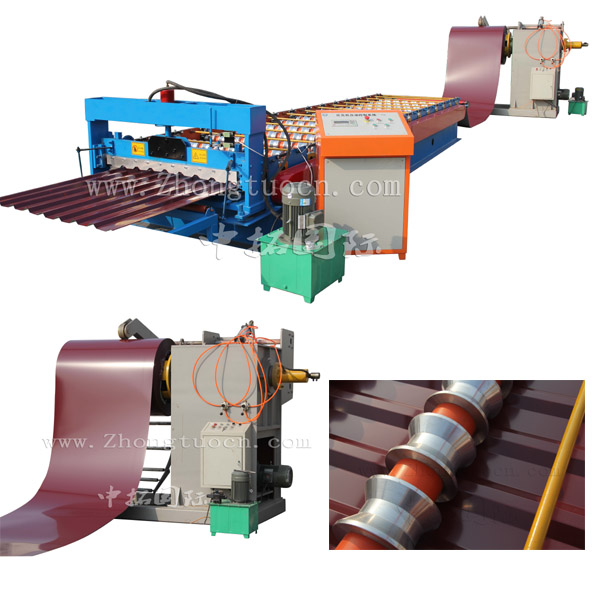

In our factory, decoiler always be used before roll forming machine to uncoiling the coil and feeding the material into main roll former.
