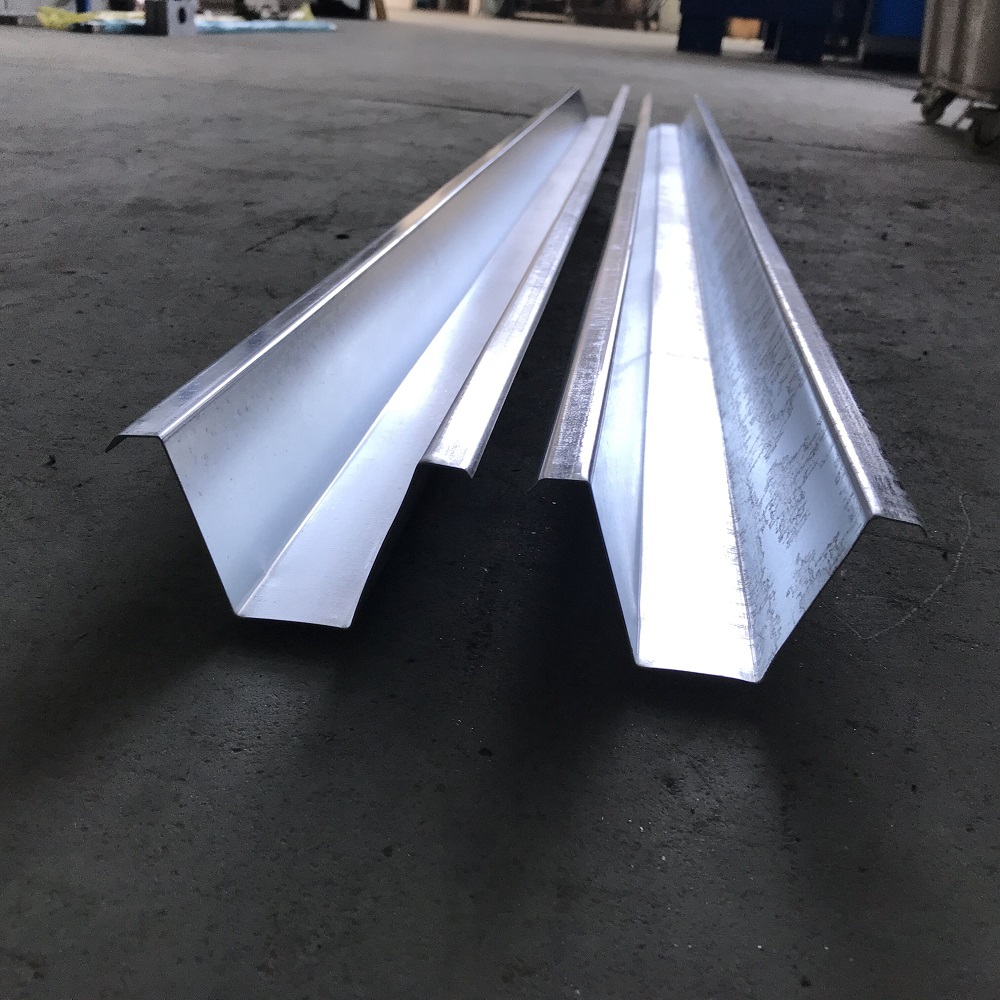

Roofing batten thickness is about 0.45mm, and 0.92mm, The material is aluminium galvanzied, the length of roofing batten is 6.1 meters.61/43/40 Roofing Batten Rollforming Machine can product the roofing batten in a high speed of 35-40 meters per minute.
Below are some specifications for you:
Model:Yx14x61x102.5mm batten channel roll forming machine
Speed:30-40m/min

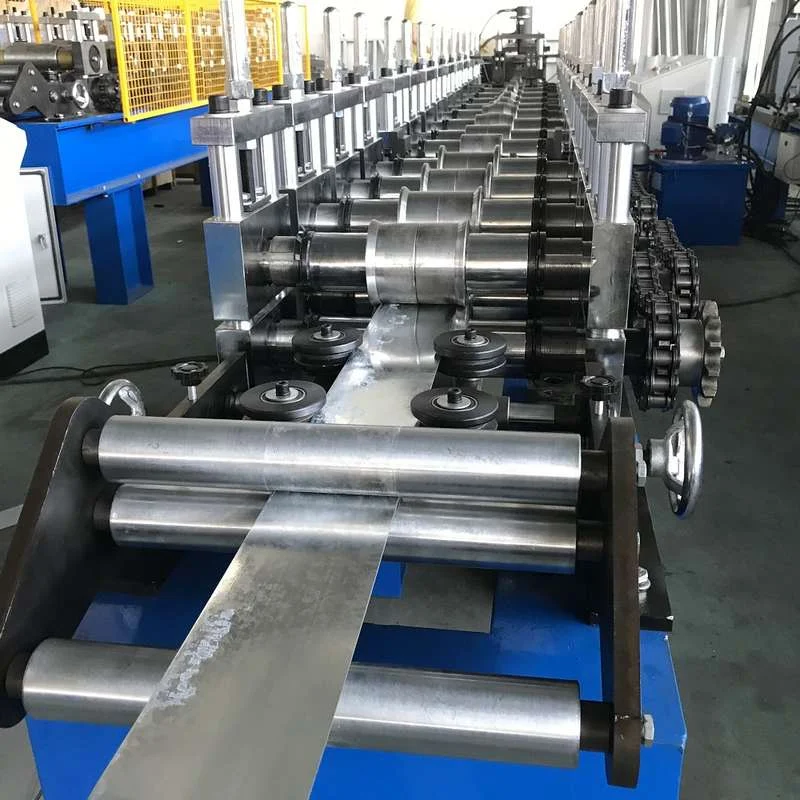

Feeding width:200mm
Thickness:0.6mm-1.0mm
Controlling:Panasonic PLC
Manual De-coiler:2 ton de-coiler

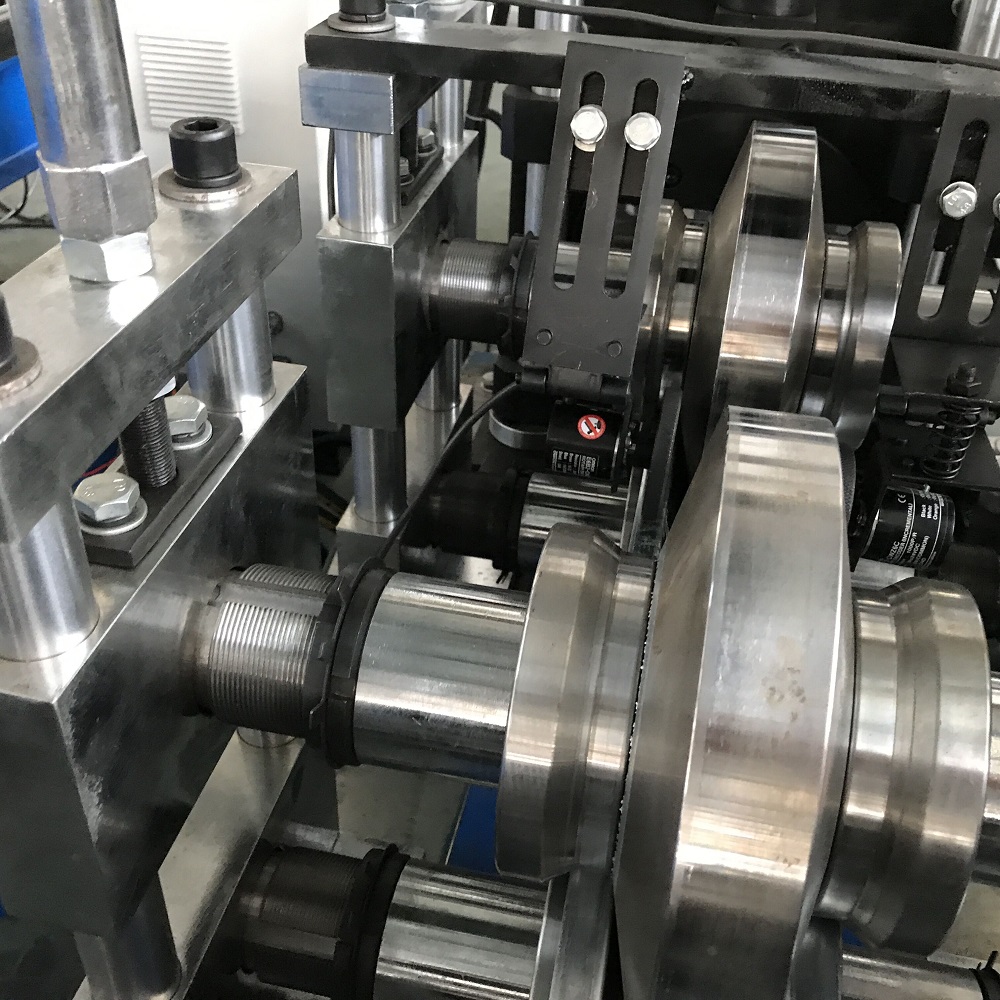

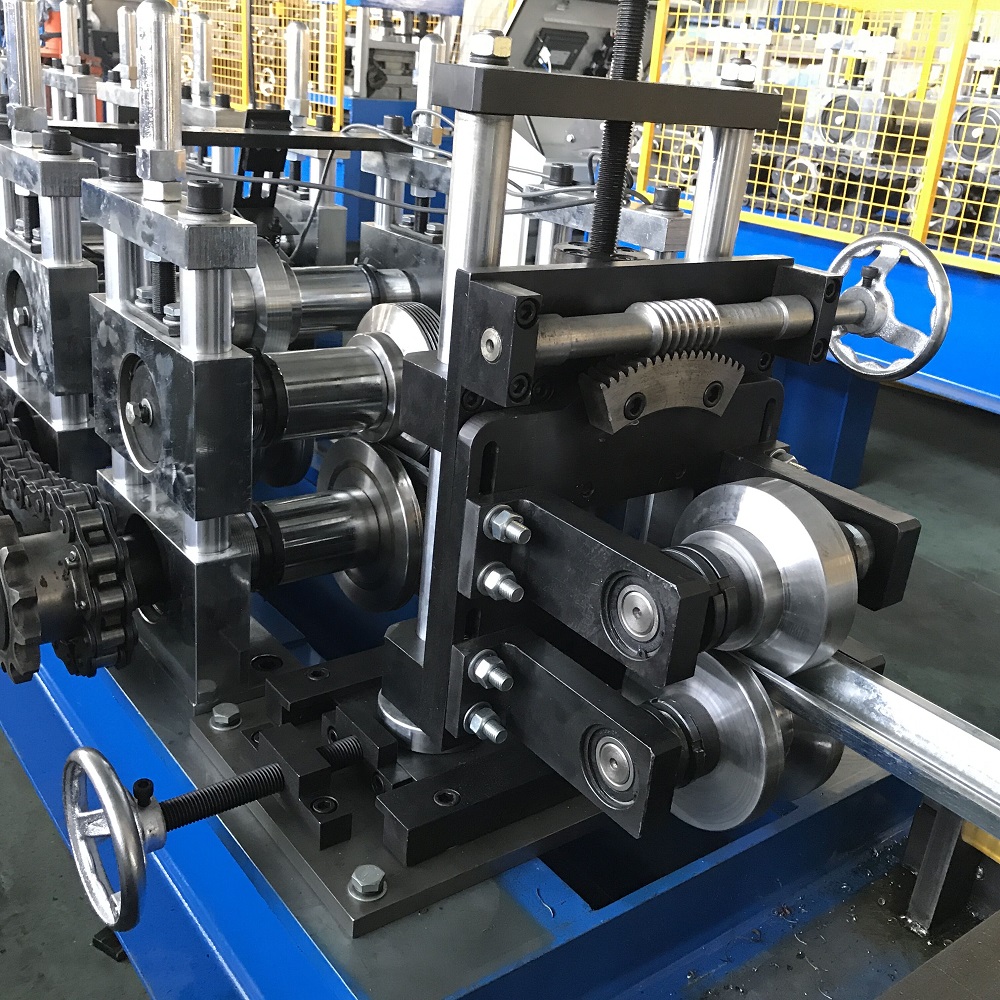

Roller station:14 stations

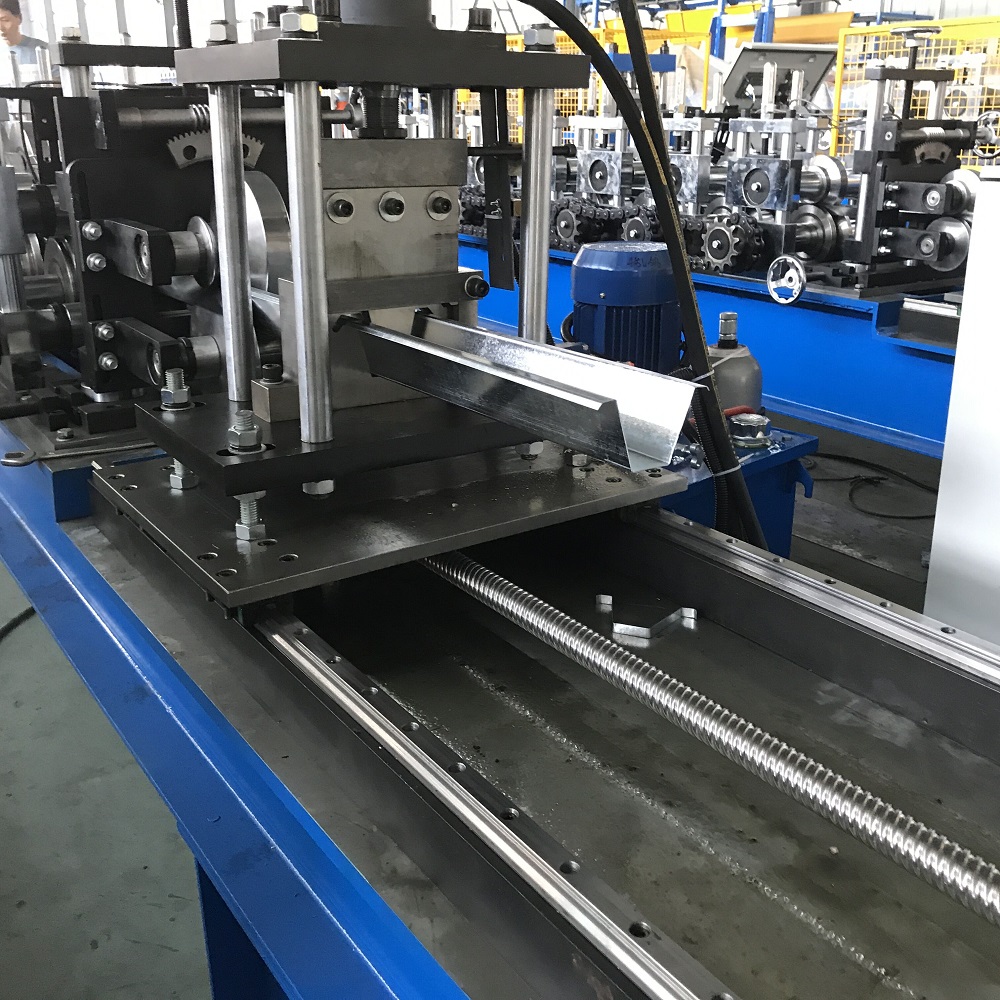

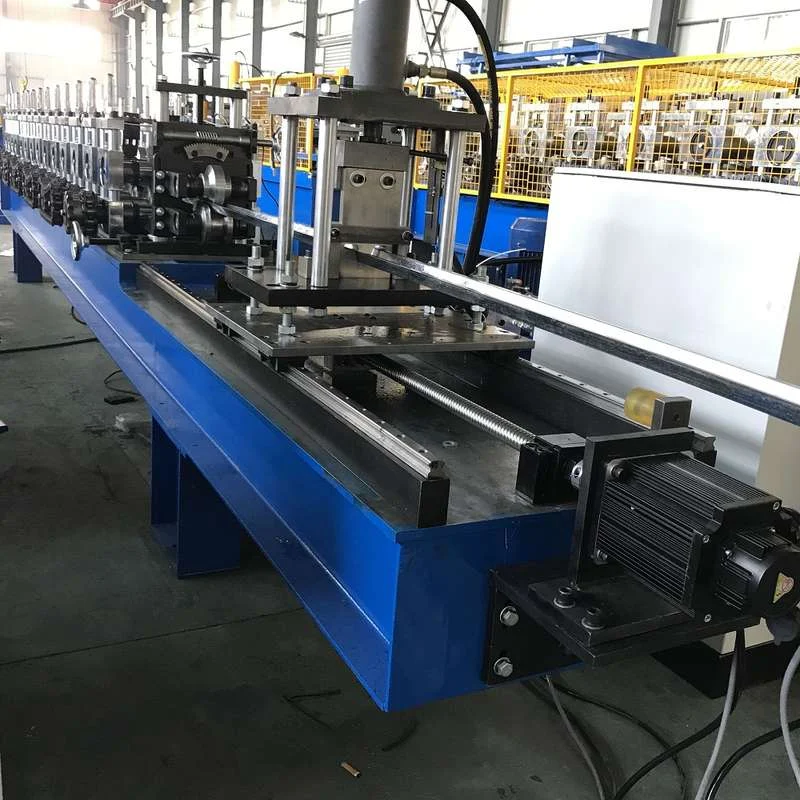

Post cutting: 1 set
Roller material:Gcr15 finish machining after quenching HRC58-62℃，chromium coating.
Shaft material and diameter: 45# steel finish machining，diameter is ￠70mm
Main power:7.5 kw
Hydraulic press:12 Mpa
Hydraulic power: 3 kw
Blade material:Cr12Mov， quenching HRC 58-62℃
Length tolearance:3m±1.5mm
Voltage:Australia standard voltage 415 V
Transmission:1,2 inch single chain
structural:Pillar structure
Color:Company color
Size:Length*Width*Height 6.5m*1,3m*1.2m
