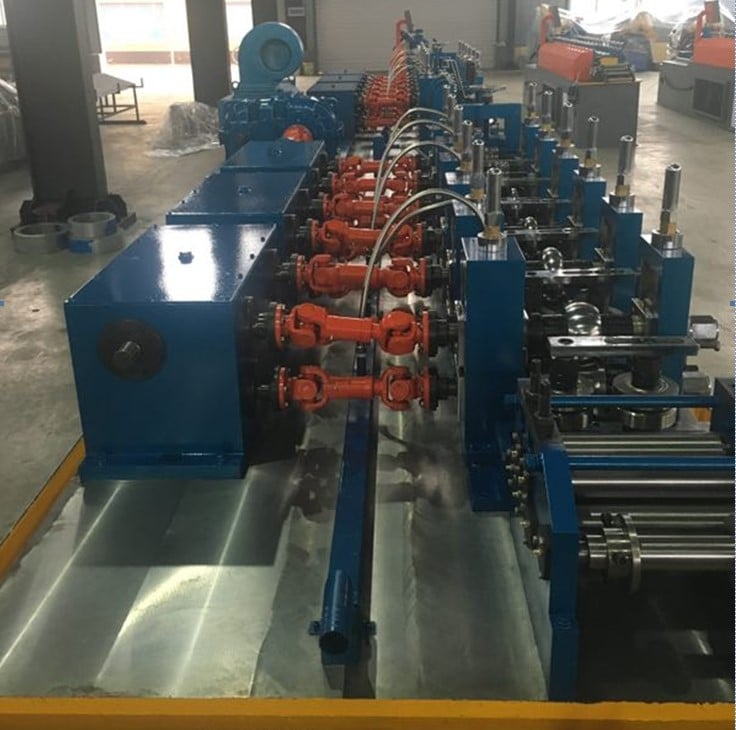

Machine features:
1. This rollformer is designed with Arcway structural,and gearbox transmission, so that the machine is strong to work stable and durable.
2. This rollformer can produce 2 sizes of the bolts, with rafted system.
3. this rollformer is with gearbox transmission.
Material: HSLA60 grade 10 & 14
Material Size: 0.083” thick X 3.350” and 0.083” thick X 3.850”

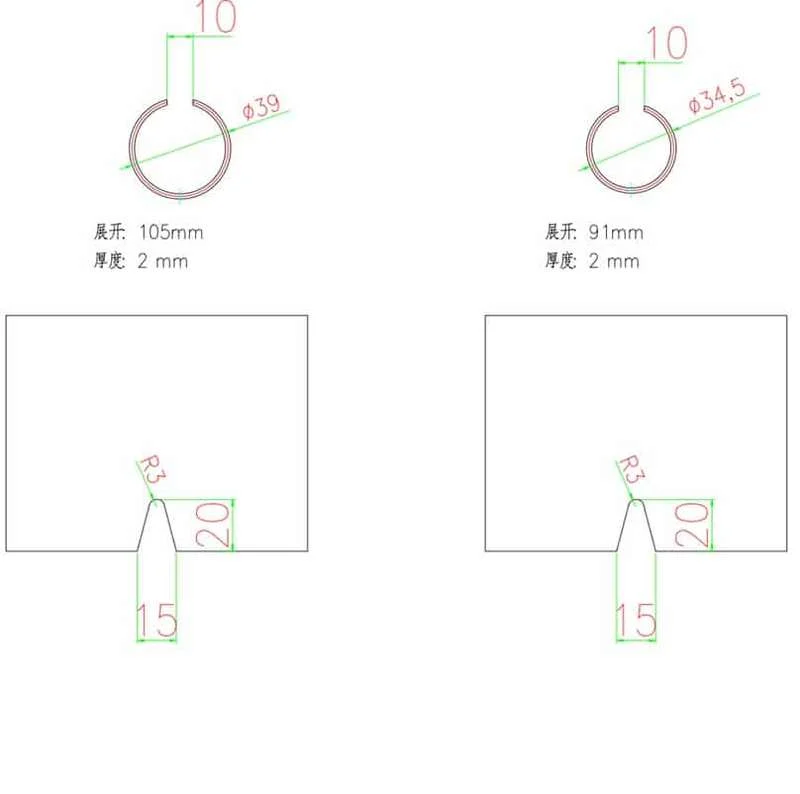

Bolts Diameter: 35mm 39mm Bolts：length: Min 600mm Max 2400mm
Size: 4500х1800х1400
Weight t: 6 tons
Voltage:600V 50HZ 3Phase
Roller fixer : Vertical archway
Frame : Memorial arch frame type
Frame thickness:25mm
Drive mode: Gearbox transmission
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 60mm
Number of rollers : 13 rollers (7 Level, 6 Vertical)
Main power: 15kw 600V
Cycloidal planetary gear speed reducer）

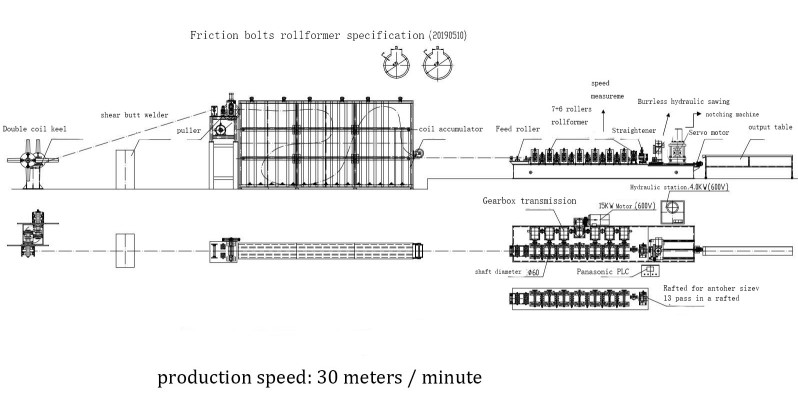

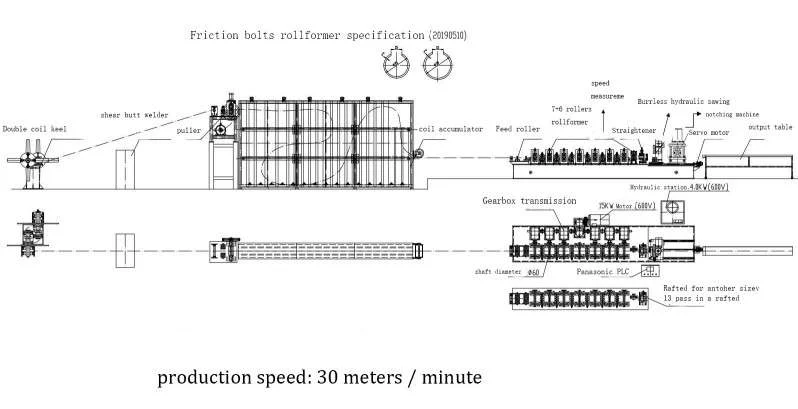

Speed: 30m/min (Including fly saw cutting)
