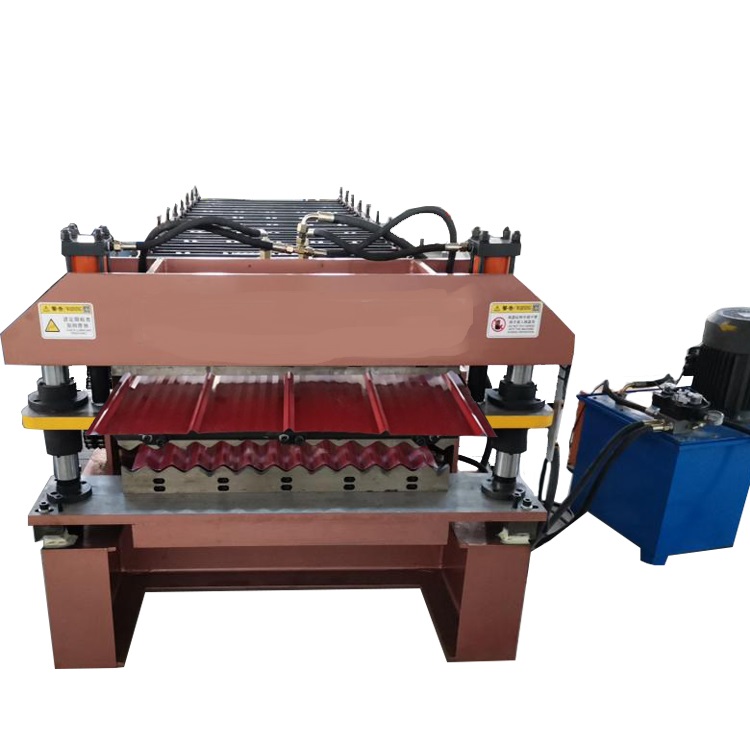

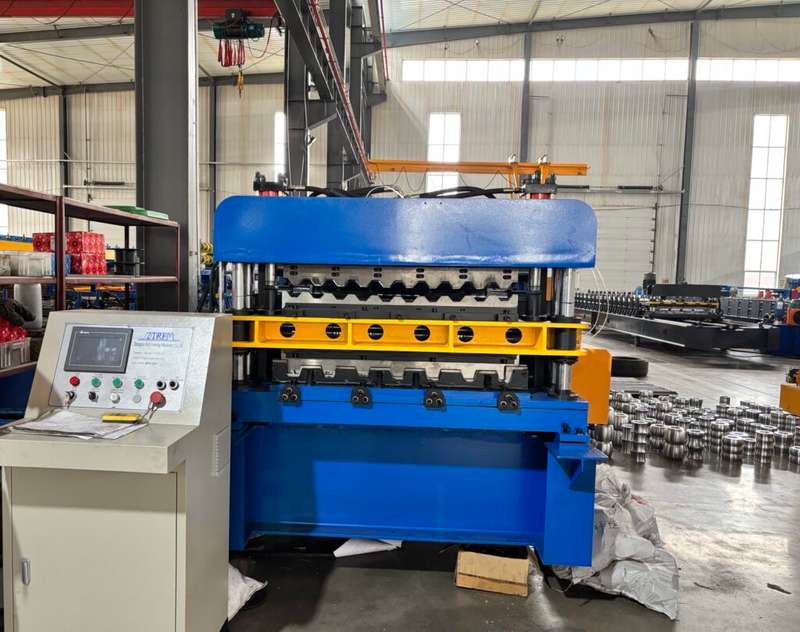

Double layer 5V roof sheet and corrugated sheets rolling forming machine for Chile market is quite popular in the Chile. Based on the market requirements, we design this double layer roofing sheet machine for Chile market. Here is video of double layer 5V roof sheet and corrugated sheets forming ...
Read more
/

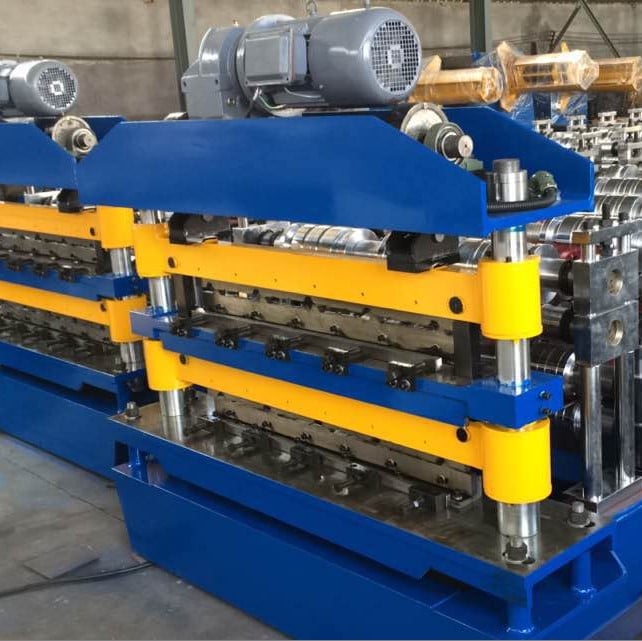

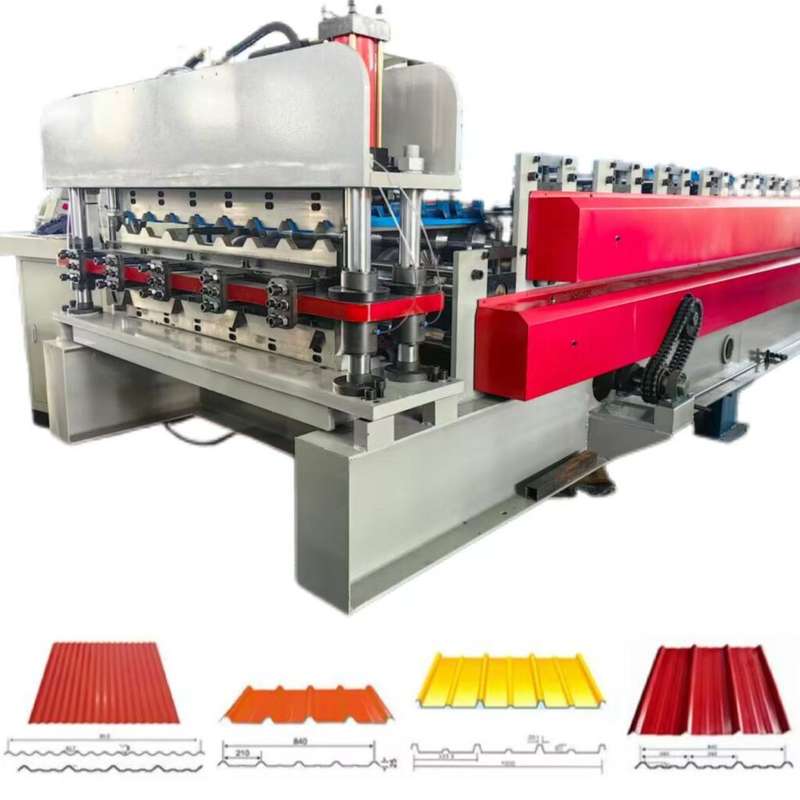

We have designed and manufactured double layer roofing sheet machines which can produce two different kinds of metal sheets as follows： Trapezoidal roofing sheet and corrugated roofing sheet Trapezoidal roofing sheet and metal glazed roof tile Corrugated roofing sheet and metal glazed roof tile Corrugated ...
Read more
/

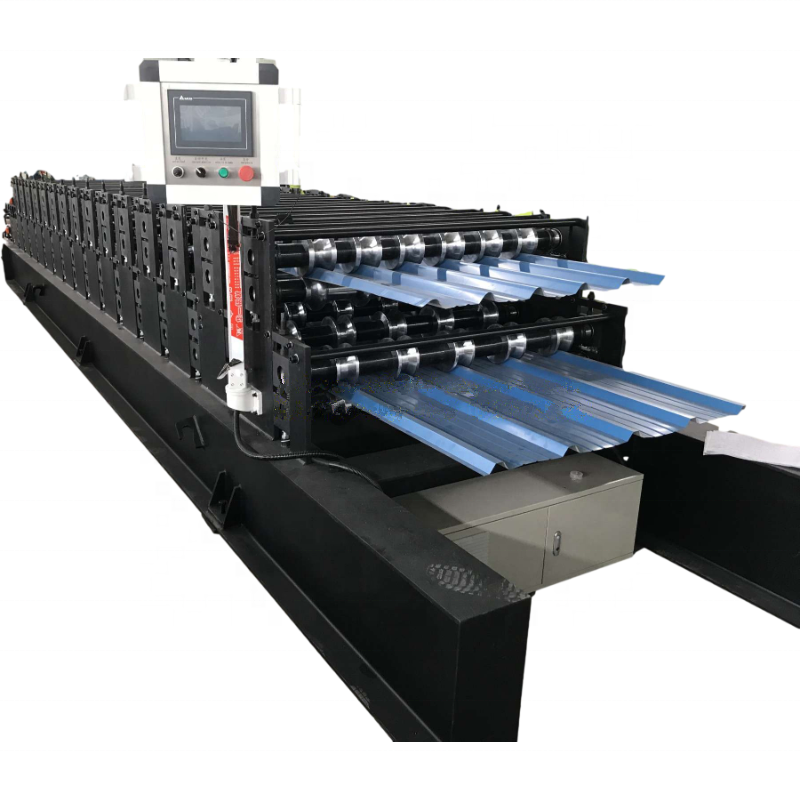

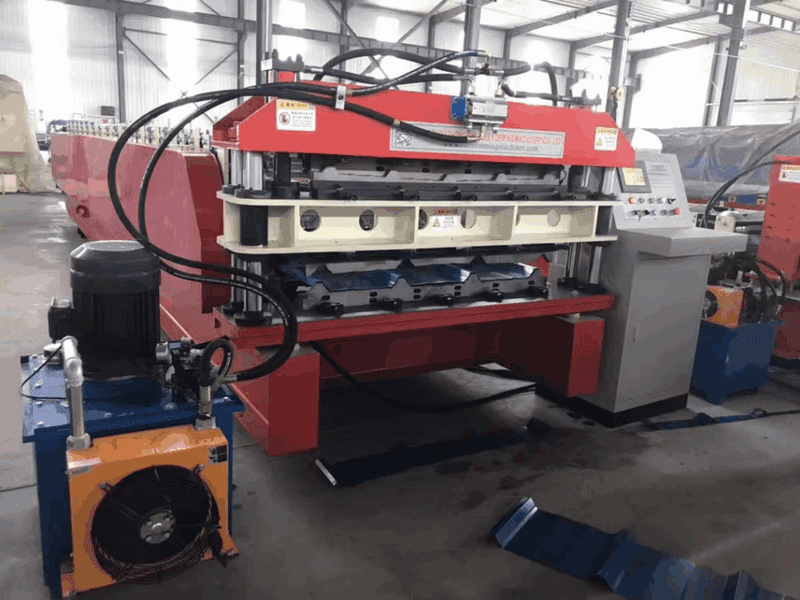

Double layer roof sheet machine for q tiles and ibr roof tile details : 1.This machine for q tiles and ibr details is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system. 2.The machine for q tiles and ibr is stable,no noise,no shake. 3.Our ...
Read more
/

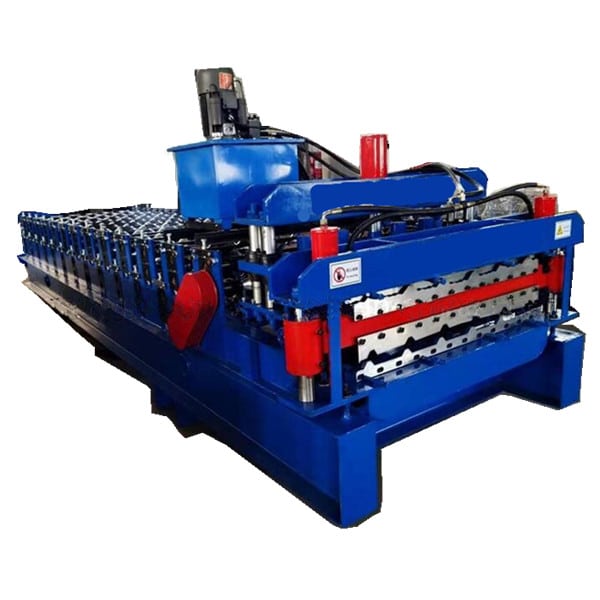

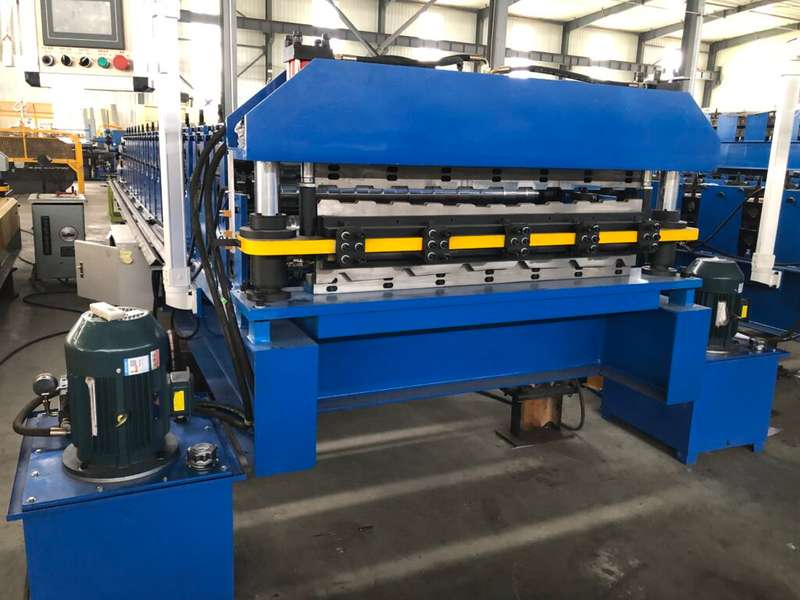

Double layer 5V roof sheet and corrugated sheets rolling forming machine for Chile market is quite popular in the Chile. Based on the market requirements, we design this double layer roofing sheet machine for Chile market. Here are two popular drawing profile for your reference: Raw material PPGI,PPGL,GI,GL,Aluminum ...
Read more
/

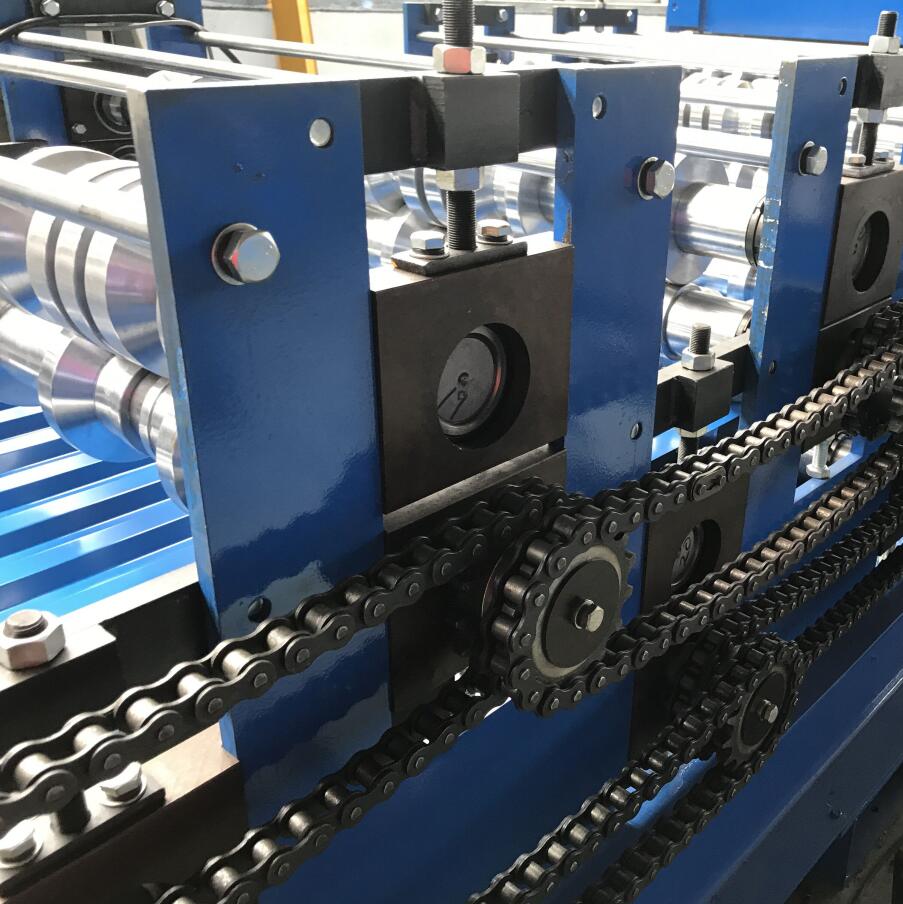

Customize double metal corrugated corrugated board roofing tile roll forming machine for sale The Customize double metal corrugated corrugated board roofing tile roll forming machine for sale consists of uncoiler and its base,infeed guides,fixed position driven forming machine, shearing device,hydraulic station,PLC control console and so on. ...
Read more
/

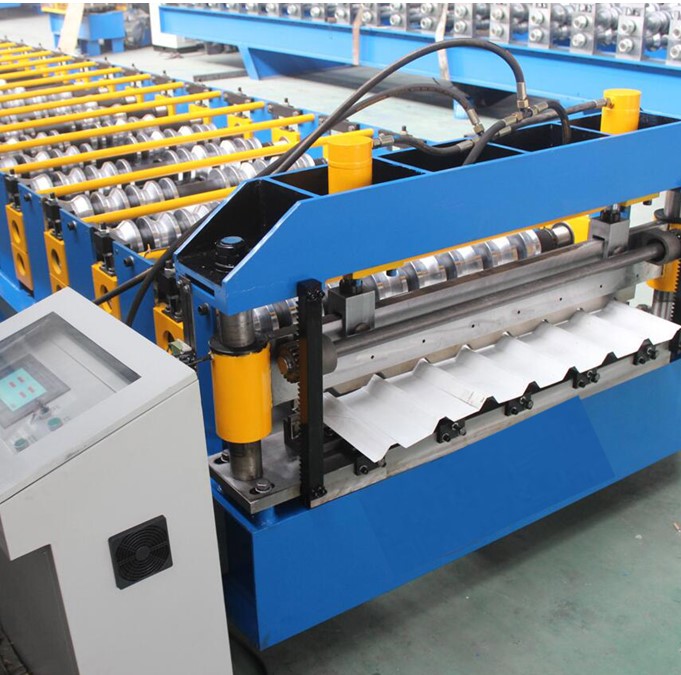

Machine model Yx28x252,5x1010mm Feeding width 1250mm Machine speed 25-30m/min（including cutting time） Sheet thickness 0,3–0,6mm, Controlling Panasonic PLC 7 tons hydraulic de-coiler One set Roll stations UP layer: 18 stations Down layer: 18 stations Roller material Gcr15 steel after finishing, quenching HRC58-62°C,surface chrome treatment Shaft material ...
Read more
/

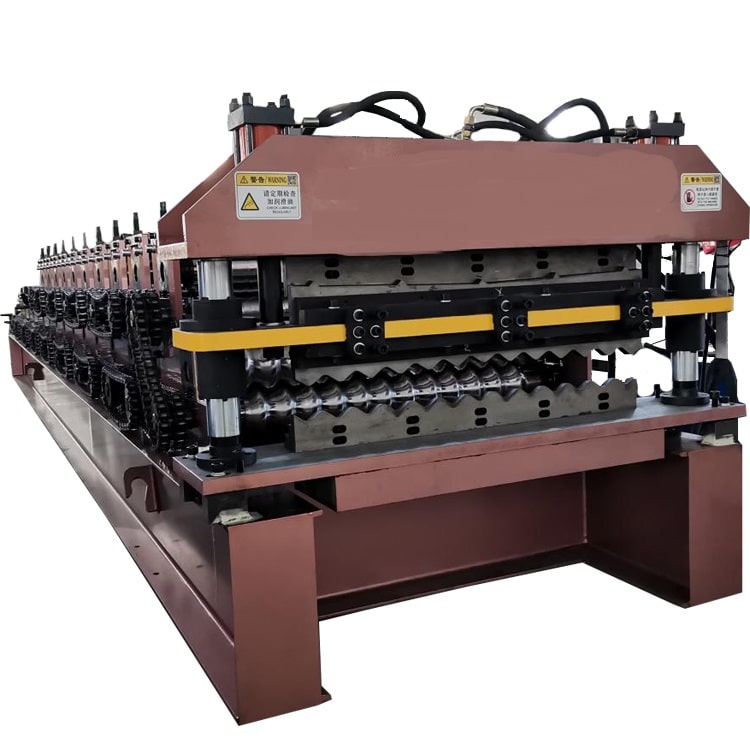

rocessing flow diagram of machine Manual de-coiler→ Feeding material into machine → Main Roll forming machine →Measure length →Hydraulic cutting →Run out table Material Minimum Thickness 0.3mm Max Thickness 0.8mm effective width 1100 mm /1026mm Hydraulic Uncoiler Coil inner diameter 450-550 mm Max coil out ...
Read more
/

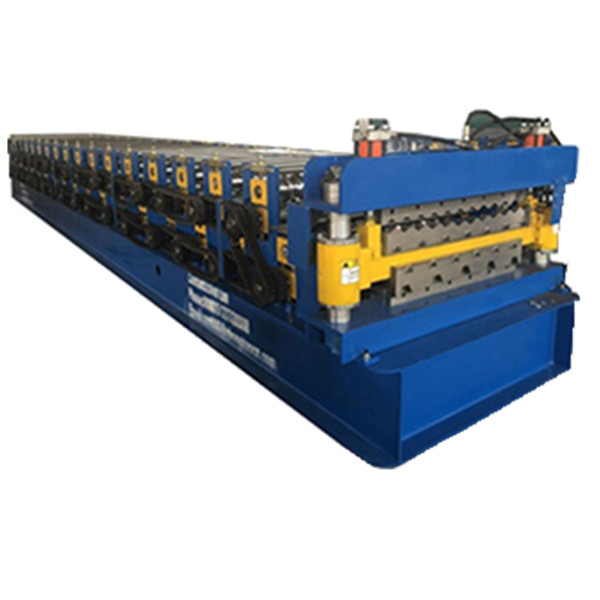

Forming steps 13rollers/15 rollers Shaft diameter 80mm Design type Middle Plate Structural roller material 45# steel chrome plating chromium shaft material 40Cr steel Work speed 6-12m/min Transport By chain Type of cutting Hydraulic Cutting tolerance ±1mm Cutter Gcr12 Cutter quantity 2 set Working pressure 40MPA ...
Read more
